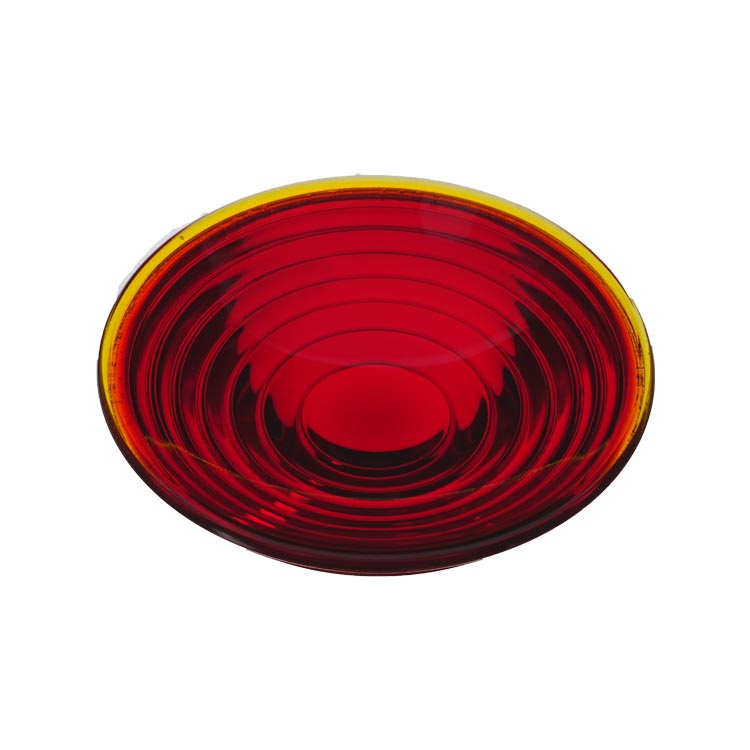

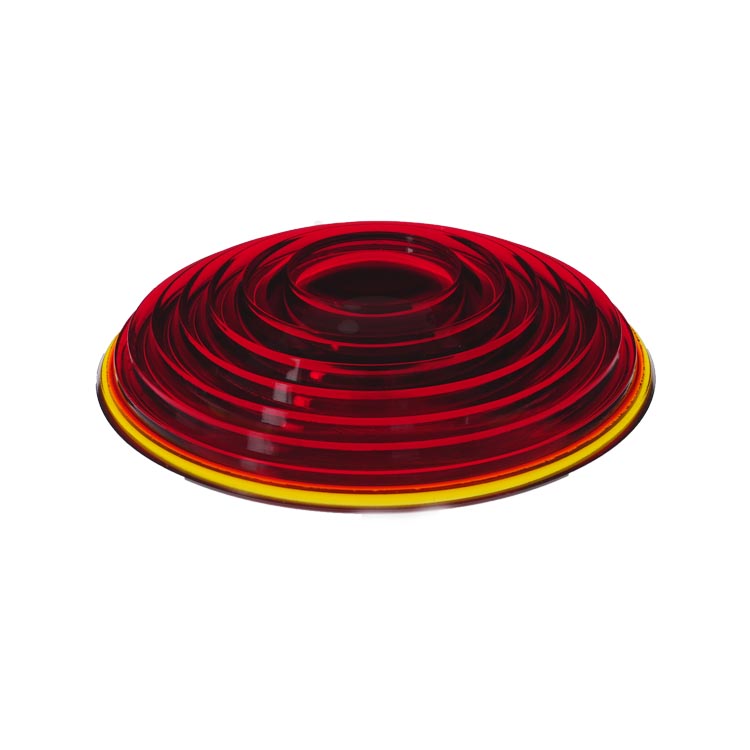

Airport Runway Red Glass Lenses

Precision Optical Engineering for Critical Aviation Safety Infrastructure

Clear Butterfly-Shaped Glass Pendant Lampshade: Artisanal Elegance for Whimsical Illumination

PRODUCT OVERVIEW: AVIATION SAFETY CRITICAL OPTICS

Red glass lenses for airport lighting represent the intersection of optical physics, materials engineering, and regulatory compliance. Unlike decorative lighting glass, these components must maintain ±5nm color stability, 92%+ luminous transmittance, and impact resistance to 50J kinetic energy across temperature extremes from -40°C to +70°C—failure is not an option when pilot safety depends on reliable visual guidance.

The deep, saturated red tint is engineered to meet ICAO (International Civil Aviation Organization) and FAA (Federal Aviation Administration) color specifications, ensuring the lamp emits a highly visible, long-range red signal that is instantly recognizable to pilots and ground crew, even in low-visibility conditions such as fog, rain, or night operations. The Fresnel lens design is the core of its performance: it concentrates and collimates light into a focused, far-reaching beam, maximizing visibility from aircraft at altitude while minimizing light scatter and glare.

Built to withstand extreme environmental conditions, the heat-resistant glass construction ensures reliable performance in both extreme cold and high temperatures, while the scratch-resistant, UV-stabilized surface prevents fading and degradation from prolonged sun exposure. The precision-molded shape guarantees a secure, airtight fit with standard airport beacon, obstruction light, and runway edge light fixtures, ensuring seamless integration into existing airport lighting infrastructure.

This red glass lampshade is an essential safety component for airport obstruction lights, approach lighting systems, and runway end identifier lights (REILs), providing consistent, long-lasting signal visibility that is critical for safe aircraft operations. Each shade undergoes rigorous quality testing to ensure optical accuracy, color consistency, and structural integrity, making it the trusted choice for airports, airfields, and aviation infrastructure projects worldwide.

✓ Factory-Direct Pricing | ✓ MOQ 1000pcs | ✓ Tempered Impact Resistance

Technical Specifications

Specification	Standard	Customization Range
Material	Tempered Borosilicate Glass 3.3	Soda-lime with thermal treatment (cost option)
Manufacturing Method	Hand-pressed forming + fire polish	Hand-pressed for prototype/small batch
Optical Design	Fresnel concentric prism rings (5–7 zones)	Custom prism angle for specific photometric distribution
Overall Diameter	Φ150mm (standard taxiway edge)	Φ100–300mm (runway threshold, approach)
Center Thickness	8.0mm ±0.3mm	6–15mm for structural requirements
Edge Thickness	12.0mm ±0.5mm	Reinforced for mechanical retention
Color Specification	Aviation Red per ICAO Annex 14	Chromaticity coordinates: x=0.680–0.720, y=0.280–0.320
Dominant Wavelength	620–645nm	625nm ±5nm standard
Luminous Transmittance	≥85% (red filter)	80–90% adjustable via selenium/cadmium ratio
Prism Efficiency	>92% TIR (total internal reflection)	Measured via goniophotometer

CUSTOM GLASS LAMP SHADE CAPABILITIES

Your Vision, Our Manufacturing Expertise

As a custom glass lampshade specialist, we transform design concepts into production-ready components. Our OEM/ODM services address the #1 priority for lighting brands: consistent quality at scalable volumes.

Manufacturing Infrastructure:

4,000㎡ production facility with dedicated hand blowing workshop
50+ skilled glassblowers maintaining traditional craftsmanship
10+ professional one to one sales custom service

Quality Assurance:

Every seeded glass cylinder undergoes three-stage inspection:

Hot Shop Inspection – Immediate visual check after forming
Annealing Verification – Stress testing after 2-hour kiln cooling
Final QC – Dimensional accuracy, bubble pattern consistency, surface defect check one by one

Shipping Options:

Sea Freight – Exw Yancheng; FOB Shanghai/Lianyungang, 25-40 days
Air Freight – For urgent samples or small batches
DDP Available – We handle customs clearance and last-mile delivery to your warehouse

APPLICATIONS & AIRFIELD SYSTEMS

Taxiway Edge Lighting (TEL)

Red Lenses: Indicate taxiway boundary (vs. blue for centerline)
Installation: Bi-directional or uni-directional fixtures
Spacing: 60m standard, 30m high-visibility areas

Runway Threshold/End

Red Lenses: Indicate runway end (approach from opposite direction)
Configuration: Wing bar, threshold identification
Intensity: High (HI) or medium (MIRL) per traffic volume

Approach Lighting System (ALS)

Red Segments: Threshold crossing height indicators
Precision: Category I/II/III instrument landing systems

Obstruction Lighting

Red Beacons: Structure marking <45m AGL
Flash Characteristics: 20–40 fpm per ICAO Annex 14

Heliport Lighting

Red Perimeter: Final approach and takeoff area (FATO) identification

More Products List in our Collection!

RFQ:

Q: What is the minimum order quantity for aviation red lenses?

A: Standard MOQ is 500 pieces for existing Φ150mm taxiway edge design. For custom diameters (runway threshold, approach systems), MOQ is 1,000 pieces due to mold fabrication costs. Emergency AOG orders: 500-piece minimum with expedited processing.

Q: What is the lead time for aviation glass orders?

A: Samples: 4–6 weeks (including photometric testing).

Production: 8–12 weeks after approval.

AOG emergency: 72 hours from factory (limited quantities)
