Borosilicate Glass Lamp Shades: the glass that won’t crack under heat.
Borosilicate is the heat-resistant glass used in laboratories and ovenware — and it is the right choice anywhere a shade sits close to a hot bulb, outdoors, or in an industrial fixture. This guide explains what borosilicate glass is, how heat-resistant it really is, whether it’s safe, and how to order shades made from it.

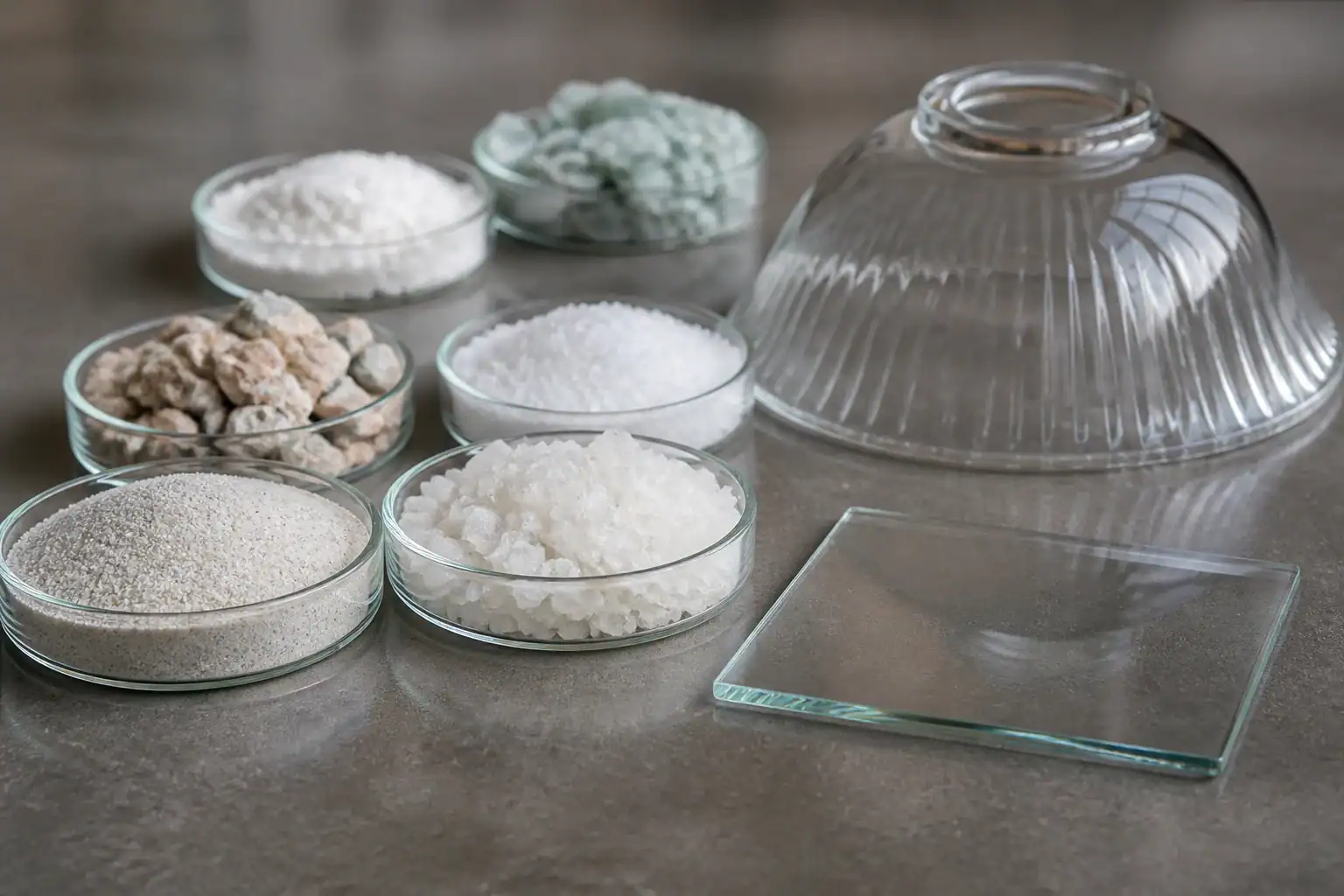

What is borosilicate glass?
Ordinary window and bottle glass is soda-lime glass. Borosilicate keeps the silica backbone but swaps in boron trioxide (B₂O₃) and a little alumina. That single change reorganises how the glass expands and contracts with heat.
The result is a glass with a coefficient of thermal expansion around 3.3 ×10⁻⁶/K — roughly a third of soda-lime’s ~9 ×10⁻⁶/K. When one part of the glass heats up faster than another, it strains far less, so it doesn’t crack from “thermal shock.” It’s also clearer (no green tint), harder, and more resistant to chemicals.

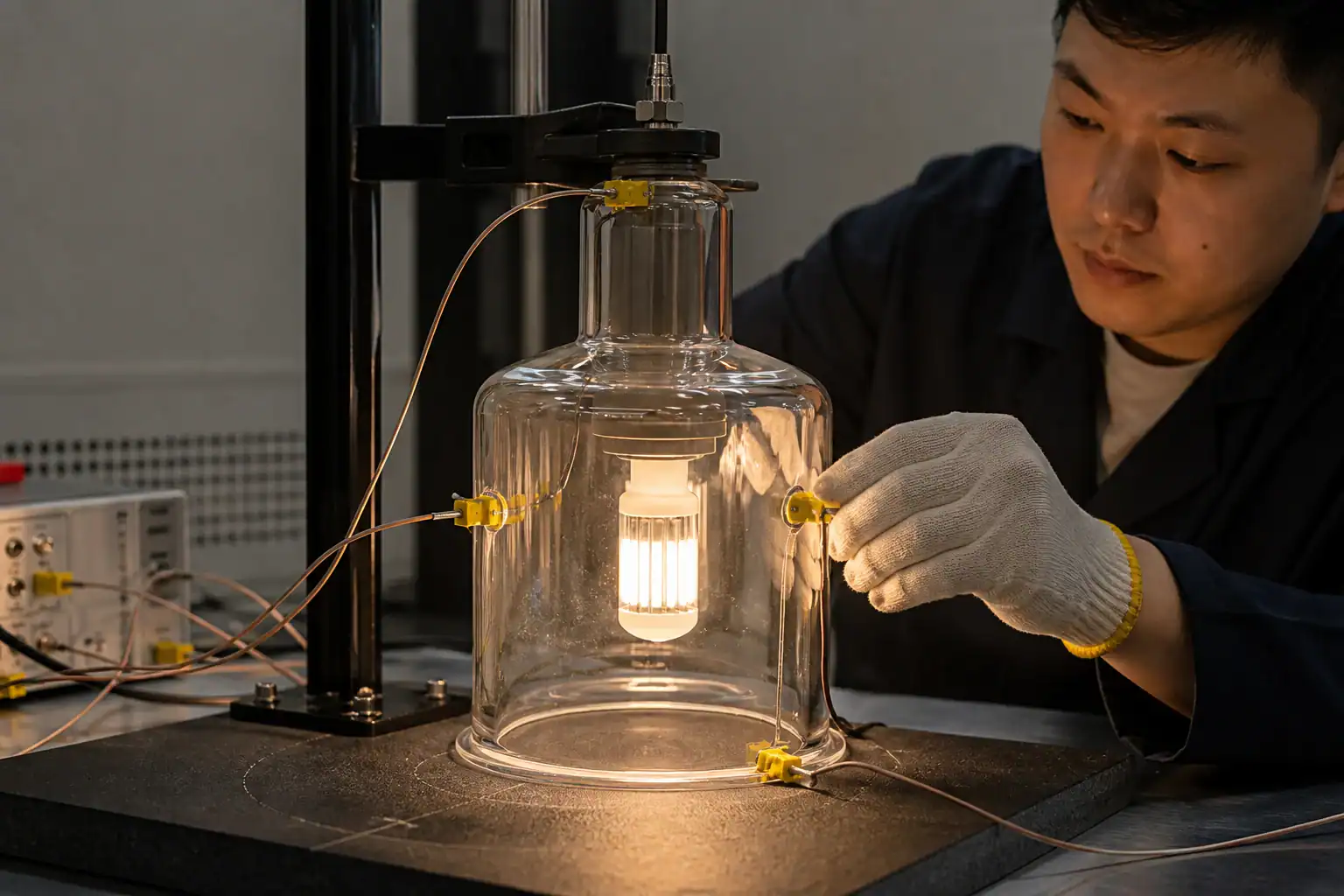

Is borosilicate glass heat resistant?
“Heat resistant” really means two different things: thermal-shock resistance (surviving a fast change) and service temperature (the heat it can sit at continuously). Borosilicate wins on both — here are the working figures.
| Property | Borosilicate | Soda-lime (ordinary) | What it means for a shade |
|---|---|---|---|
| Thermal expansion (CTE) | ~3.3 ×10⁻⁶/K | ~9 ×10⁻⁶/K | ~3× less strain when heated unevenly |
| Thermal-shock tolerance | ~150–165 °C ΔT | ~40–50 °C ΔT | Survives hot bulb + cold draught / rain |
| Max continuous service | ~450 °C | ~110 °C | Safe with high-wattage & enclosed fixtures |
| Softening point | ~820 °C | ~700 °C | Higher forming & safety margin |
| Chemical durability | Very high | Moderate | Withstands cleaning chemicals, salt air |

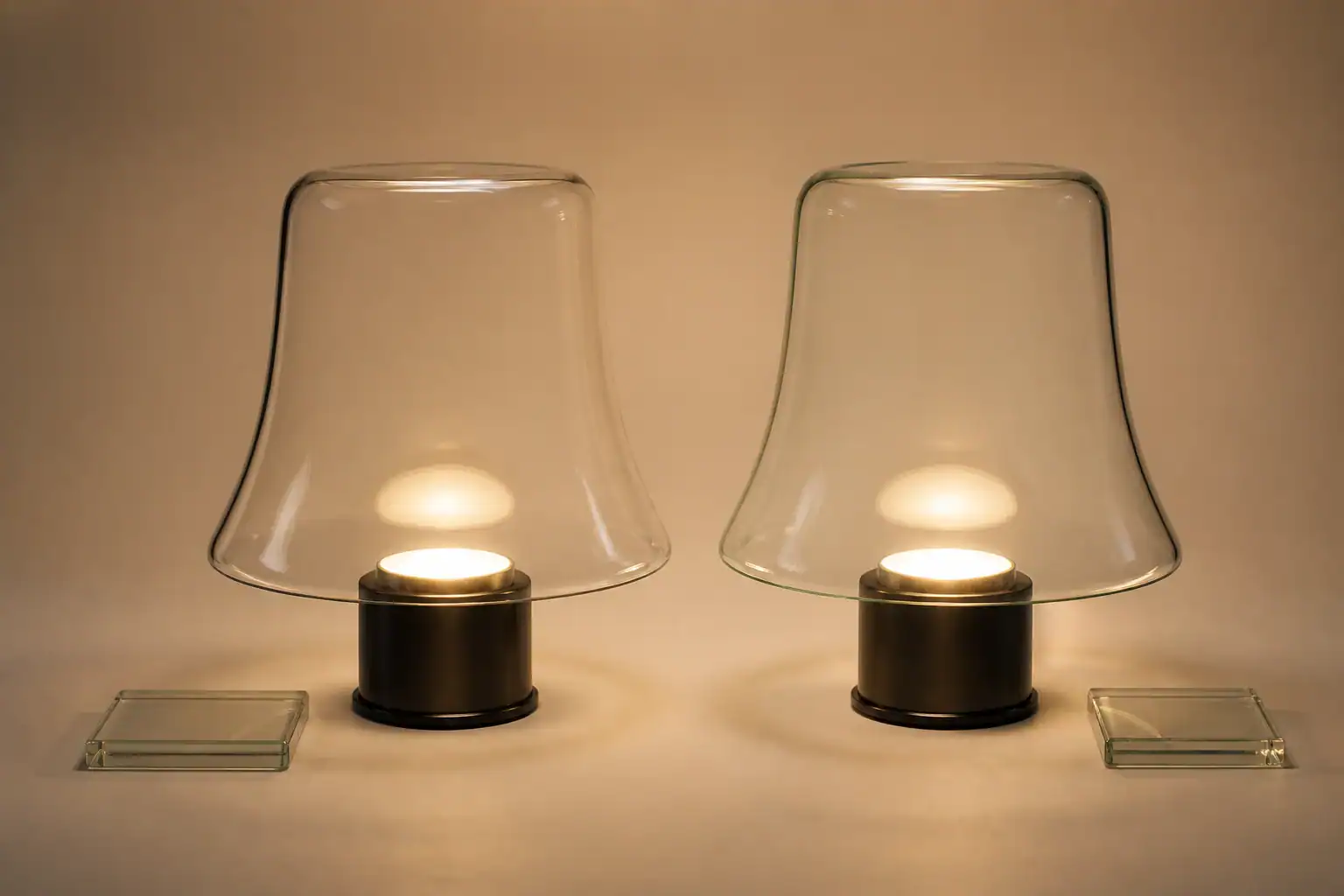

Borosilicate vs soda-lime vs tempered glass.
These three get confused constantly. Soda-lime is the cheap default; tempered is soda-lime made stronger by heat-treating; borosilicate is a different chemistry altogether. For lighting, the distinction is real.
| Borosilicate | Soda-lime | Tempered (toughened) | |
|---|---|---|---|
| Resists thermal shock | Excellent (~150 °C) | Poor (~40 °C) | Moderate (~150 °C, but shatters fully if it fails) |
| Max service temp | ~450 °C | ~110 °C | ~250 °C |
| Clarity | High, no green tint | Slight green edge | Slight green edge |
| Can be re-cut / drilled | Yes | Yes | No (must be cut before tempering) |
| Relative cost | Higher | Lowest | Medium |
| Best lamp-shade use | Industrial, outdoor, high-wattage, lab/clean | Indoor decorative, low heat | Safety glazing, large flat panels |
For purely decorative indoor shades on low-heat LED fixtures, ordinary or opal glass is usually fine and more economical. Choose borosilicate when heat, weather or chemical exposure is in play — see where it’s used.

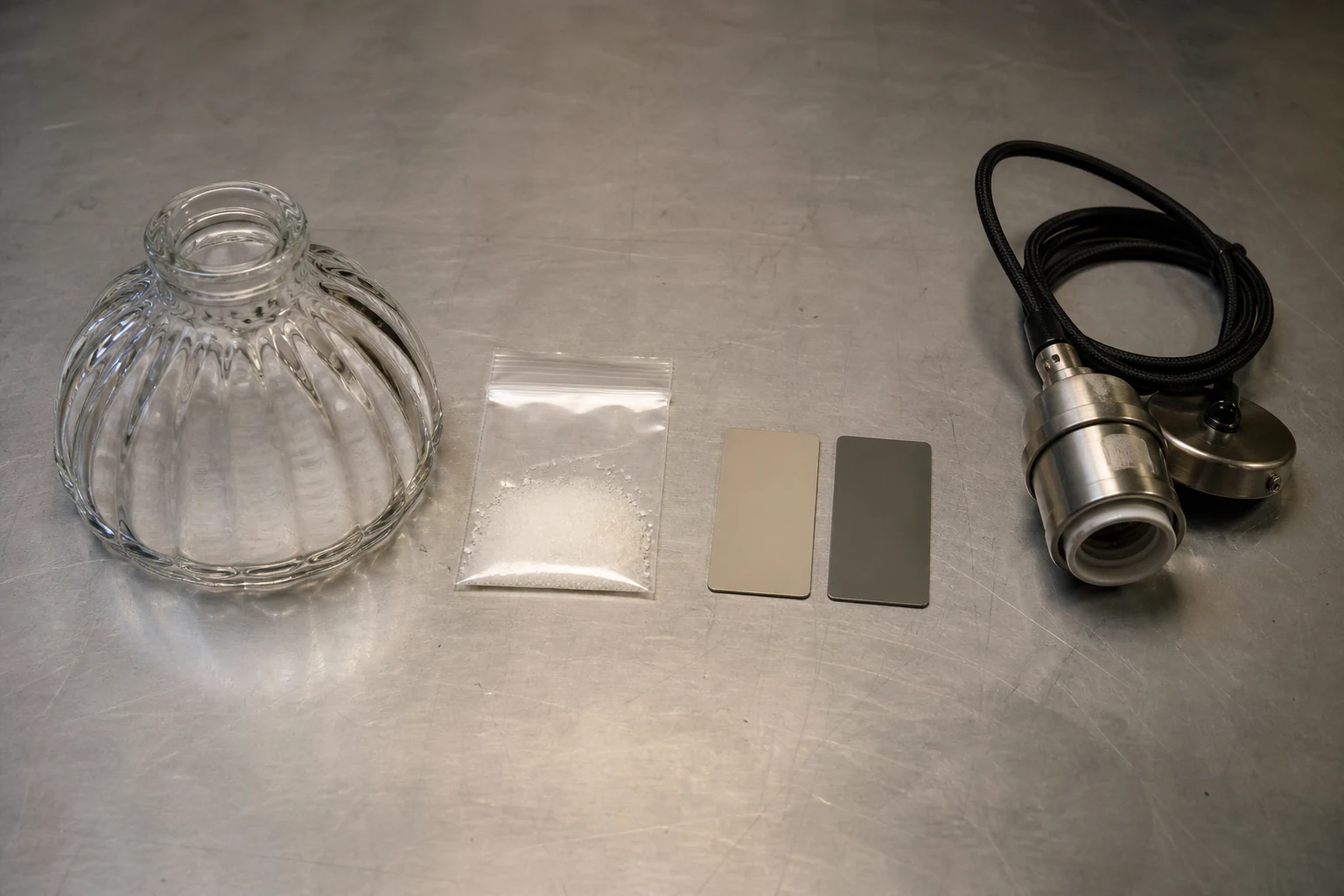

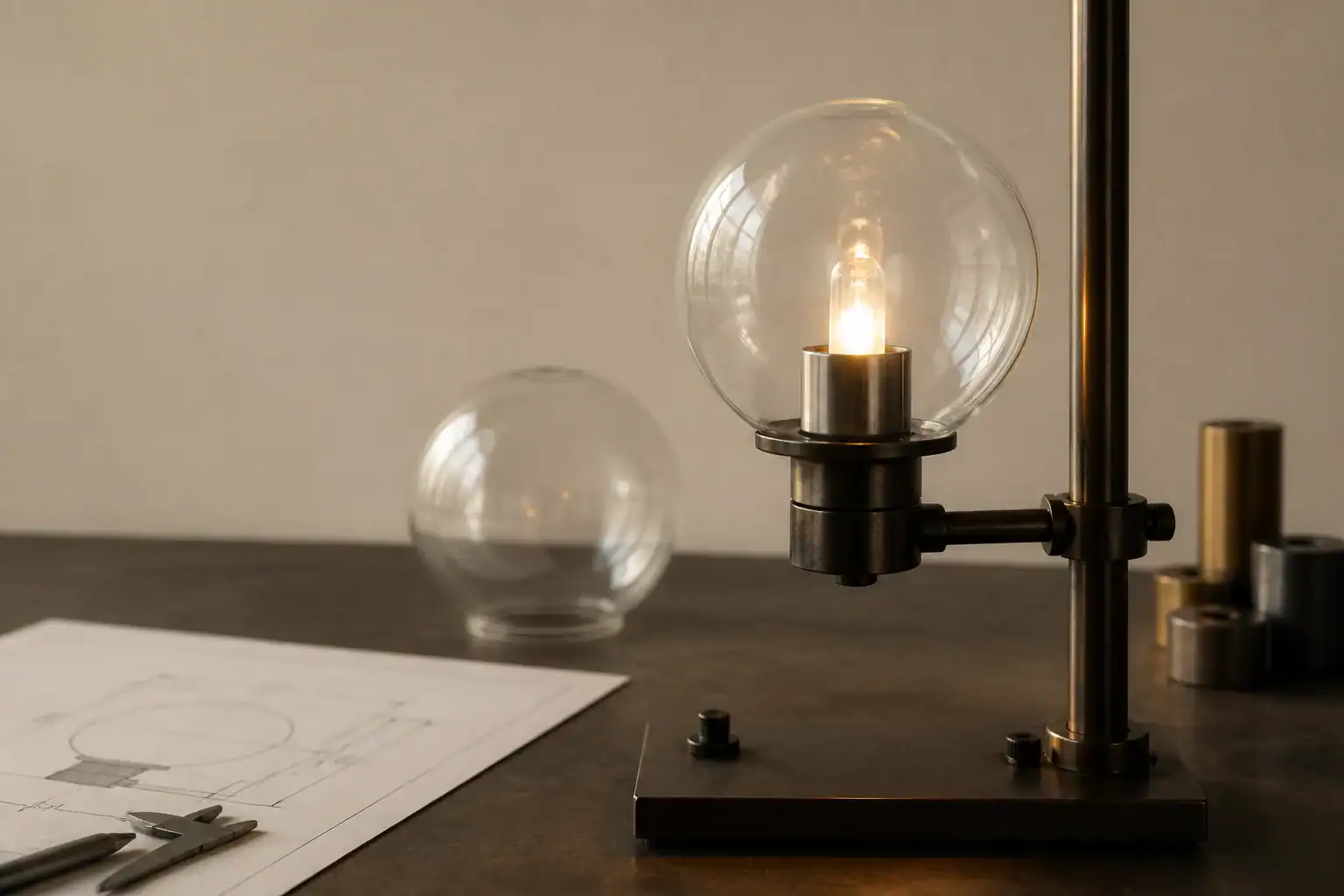

Is borosilicate glass toxic or safe?
Lead & cadmium free
Contains no heavy metals to leach. Meets RoHS and REACH for export to the EU, US and beyond.
Chemically inert
Doesn’t react with cleaning agents, moisture or salt air, and won’t discolour or cloud under a hot bulb over time.
Stable under heat
No off-gassing or yellowing at lamp temperatures — the reason it’s the standard for enclosed and high-wattage fixtures.
Borosilicate glass lamp shade types.
Borosilicate can be blown, pressed or tube-formed, and finished clear or diffused. These are the variants we produce most often — each links to its full collection.
Clear Borosilicate Shades
Crystal-clear, no green tint — for Edison-bulb pendants, industrial and outdoor fixtures.
See clear glass shades →
Opal Borosilicate Shades
Even, glare-free diffusion in a heat-tough body — ideal for hospitality and high-wattage.
See opal glass shades →
Explosion-Proof Shades
Heavy-wall borosilicate for hazardous-area, marine and heavy-industry luminaires.
See explosion-proof range →
Looking for a specific profile? Browse globe, dome, cone and cylinder forms in the full glass lamp shade range, or match dimensions with the lamp shade size guide.
Borosilicate shade manufacturing specs.
What we can produce in borosilicate, as a glass lampshade manufacturer since 1999.
| Spec | Capability |
|---|---|
| Forming methods | Mouth blown · machine pressed · tube / lampwork (thick-wall industrial) |
| Diameter range | 80mm – 500mm standard · up to 700mm on request |
| Wall thickness | 2–3mm decorative · up to 5–6mm industrial / explosion-proof |
| Fitter necks | 1-5/8″, 2-1/4″, 3-1/4″, 4″ · any custom neck to drawing |

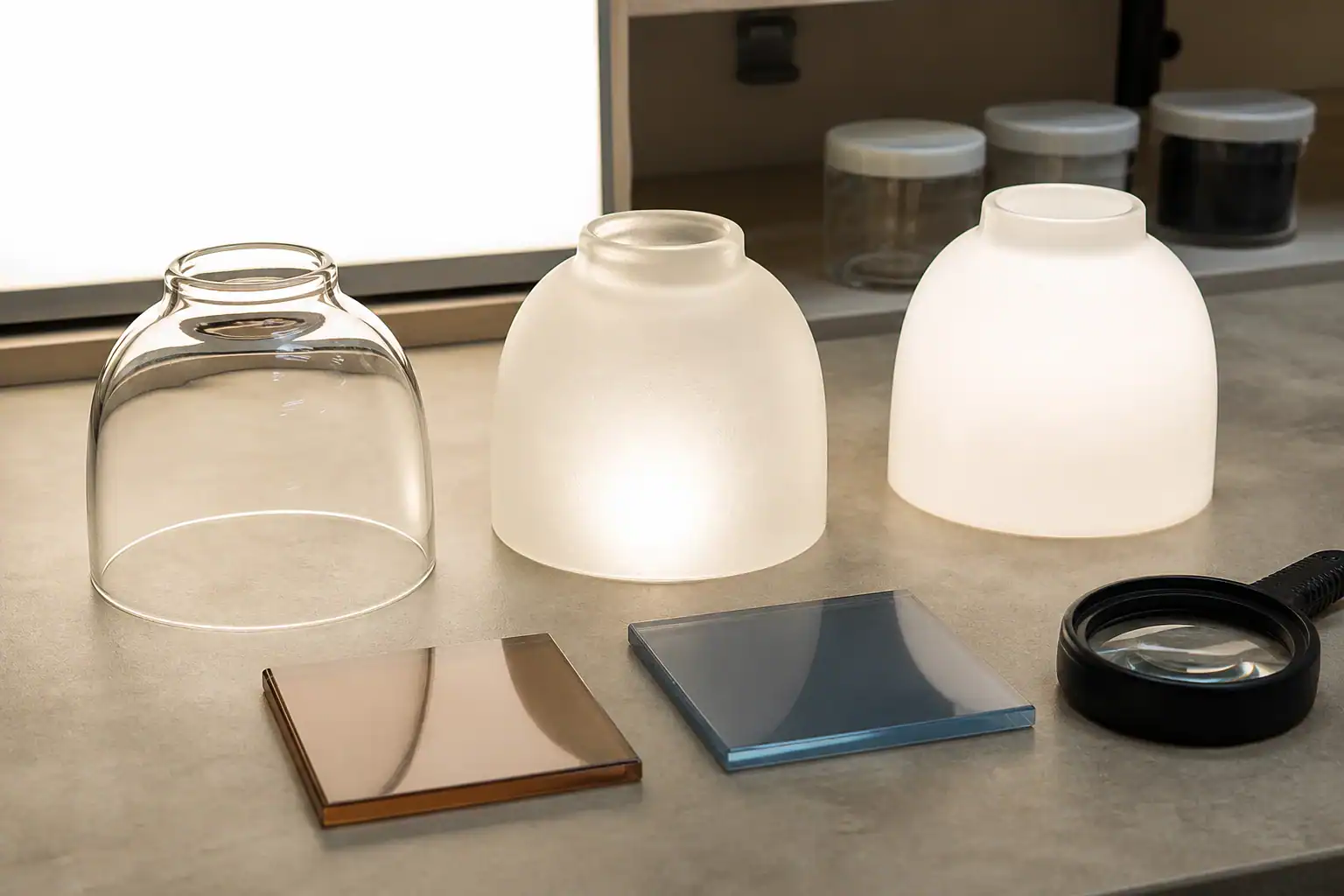

| Finishes | Clear · opal/white · frosted/etched · amber · smoke · custom tint |
| Tolerance | ±2mm (mouth blown) · ±0.5mm (machine pressed) |
| MOQ | 500 pcs per SKU (250-pc trial negotiable for new customers) |
| Certifications | CE · RoHS · REACH · SMETA · ISO 9001:2015 |

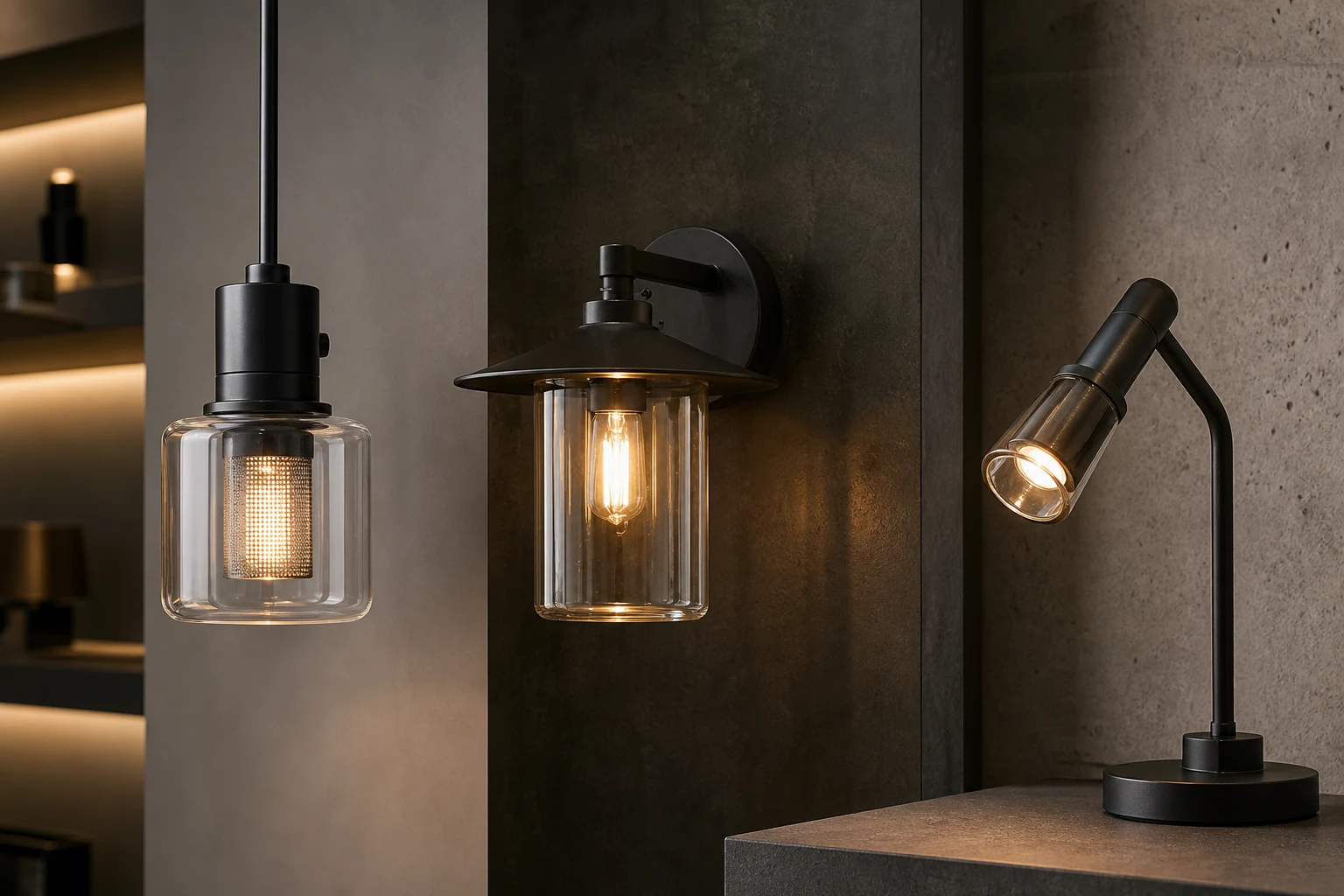

When to specify borosilicate.
| Application | The stress | Why borosilicate |
|---|---|---|
| Industrial / explosion-proof | High wattage, impact, hazardous areas | Thick-wall, thermal-shock & chemical resistant |
| Outdoor & landscape | Rain on a hot fixture, frost, UV | Survives wet/cold shock; won’t cloud |
| Restaurants & kitchens | Grease, hot wash-down, long hours | Inert, easy-clean, stable colour |
| Hotels & high-output decorative | 100W+ enclosed fittings | No yellowing or cracking at temperature |
Browse shades by setting: engineering / industrial, outdoor, and restaurant & café lamp shades.

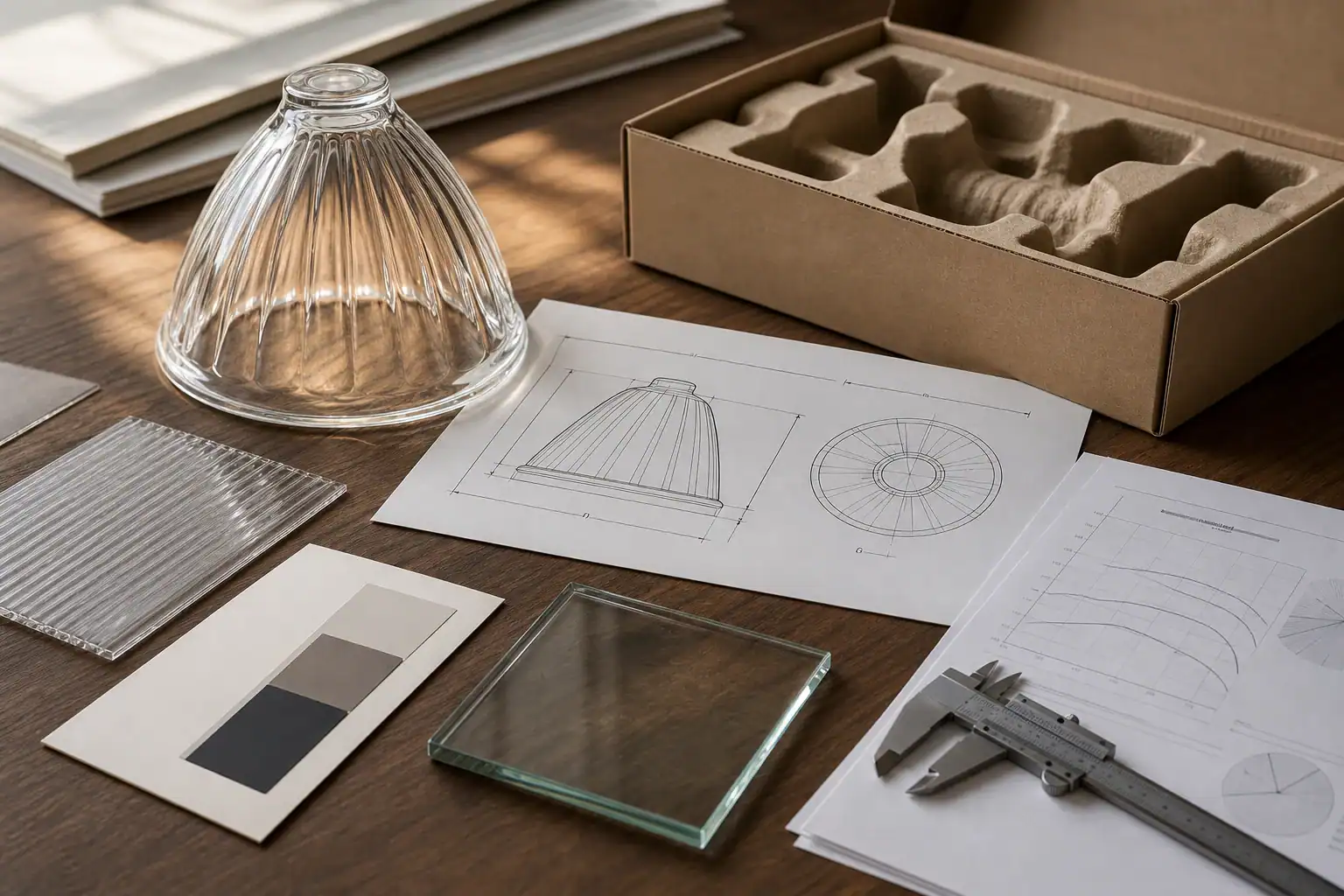

Custom & wholesale borosilicate shades.
Lighting brands, hospitality projects and industrial OEMs rarely fit a stock size. As a glass lampshade manufacturer, we tool borosilicate shades to your exact drawing — from a single restoration match to a full production run.

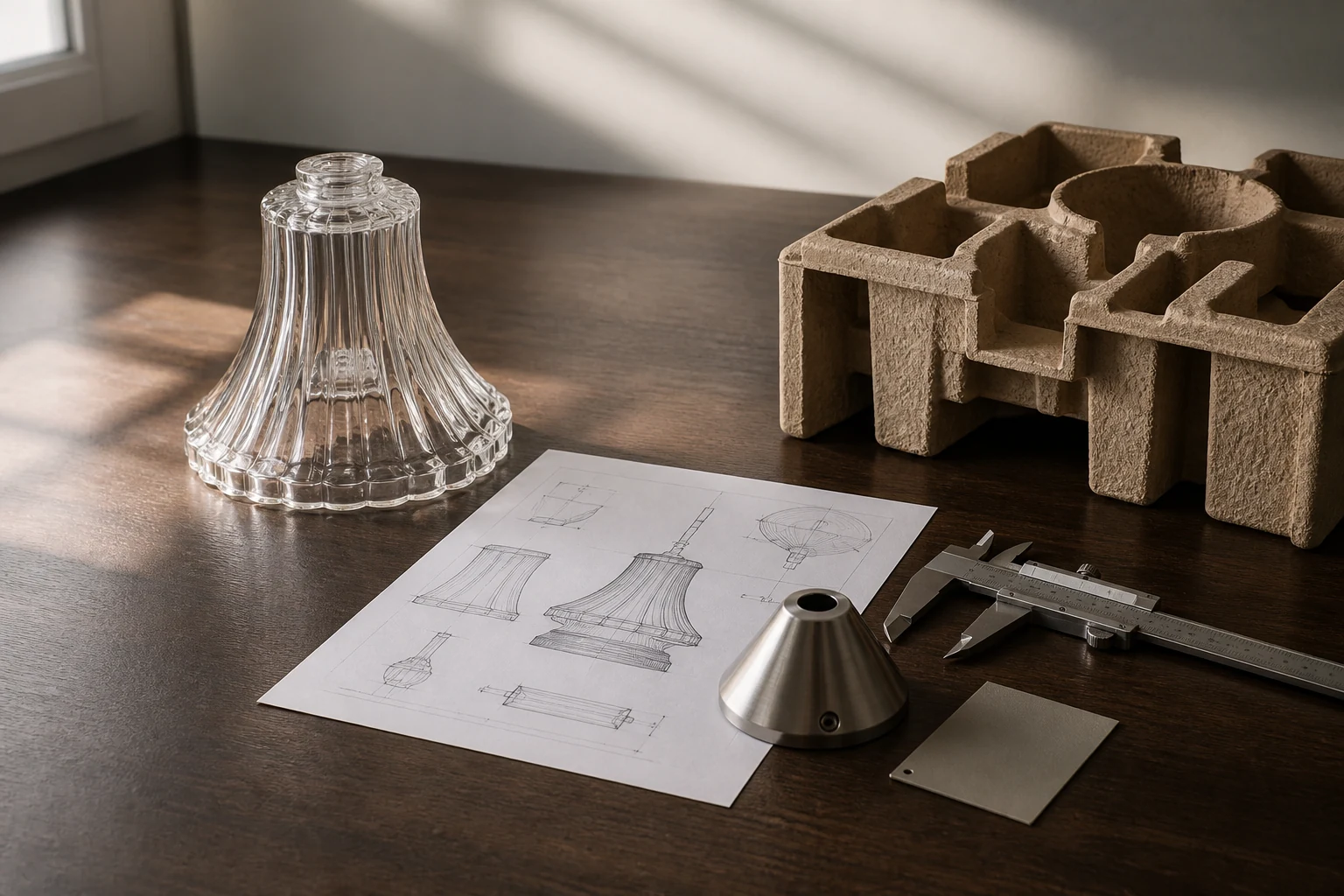

To your drawing

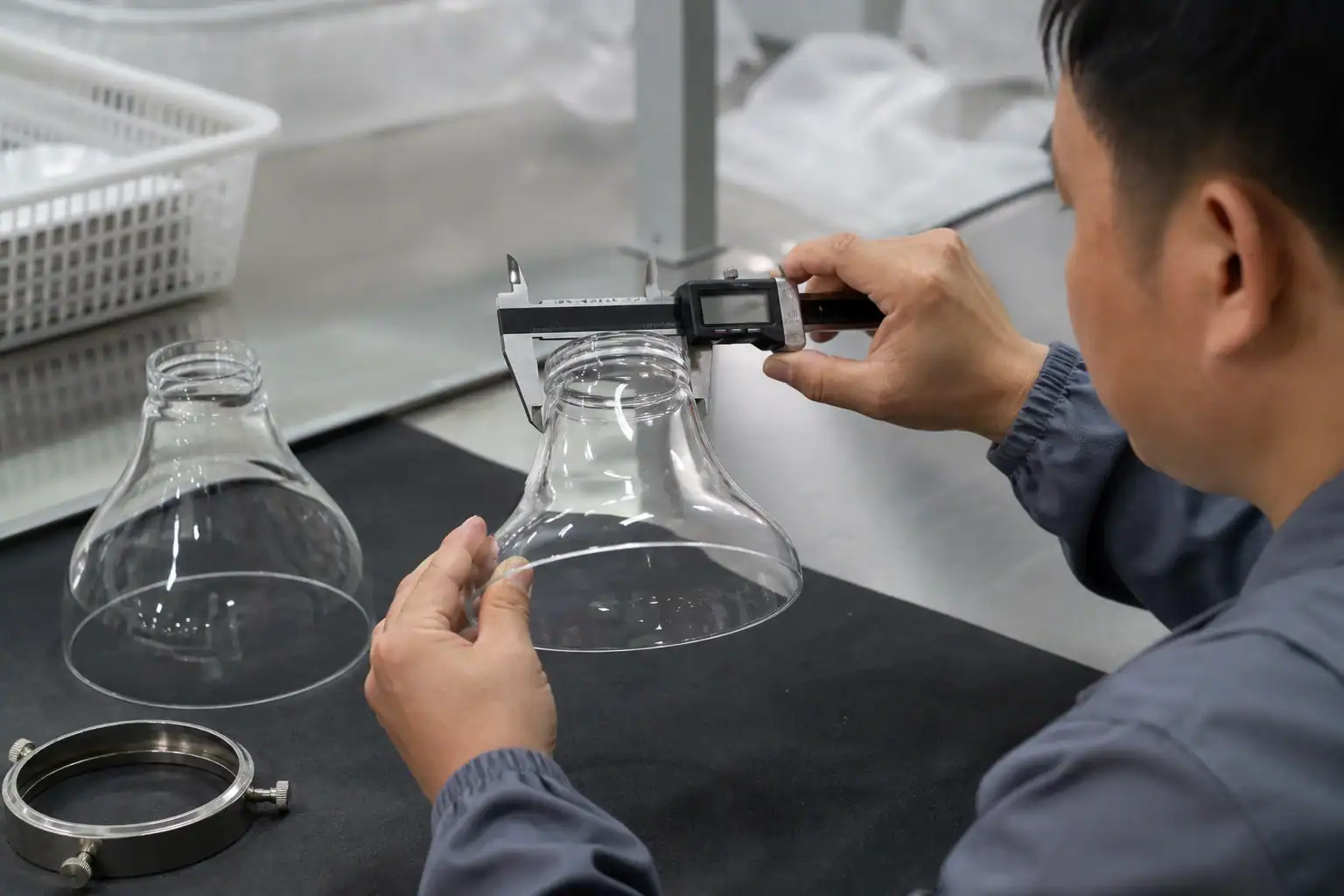

Send a sketch, sample or CAD. We confirm formability in borosilicate, neck and tolerance, then sample before tooling.
Volume & MOQ
500 pcs per SKU standard, 250-pc trial for new customers; scalable to tens of thousands with stable lead times.
Export-ready
CE / RoHS / REACH / ISO 9001, full export packing, and 150+ country shipping experience since 1999.
Related material & shade guides.
Borosilicate glass FAQs.
What is borosilicate glass?
Borosilicate glass is made mainly from silica and boron trioxide (about 12–15% B₂O₃). The boron gives it a very low coefficient of thermal expansion — around 3.3 ×10⁻⁶/K, roughly a third of ordinary soda-lime glass — so it resists cracking from sudden temperature change. It’s the same glass family used for lab glassware and Pyrex-style cookware. See the full breakdown →
Is borosilicate glass heat resistant?
Yes. It withstands rapid temperature swings of about 150–165 °C without cracking, versus roughly 40–50 °C for soda-lime glass. It softens near 820 °C and tolerates continuous service up to about 450 °C — which is why it’s preferred for high-output, enclosed and outdoor fixtures. See the numbers →
Is borosilicate glass toxic or safe?
It’s non-toxic and very safe: lead-free, cadmium-free, chemically inert, and it doesn’t leach or off-gas when heated. That’s exactly why it’s used for laboratory, pharmaceutical and food glassware — and why it won’t discolour under a hot bulb. More on safety →
What’s the difference between borosilicate and regular glass?
Regular glass is soda-lime — cheap, used for windows and bottles. Borosilicate swaps in boron trioxide, giving about three times lower thermal expansion, far higher thermal-shock resistance, better chemical durability and clearer colour, at a higher cost. See the comparison table →
Why use borosilicate glass for lamp shades?
Shades sit close to heat and, outdoors, to sudden temperature and moisture changes. Borosilicate’s low thermal expansion means it resists thermal-shock cracking from hot bulbs, rain on a warm fixture, or wash-down cleaning. It’s the standard for explosion-proof, industrial, outdoor and high-wattage lighting.
Can you make custom borosilicate glass lamp shades?
Yes. We produce borosilicate shades to custom dimensions, fitter-neck sizes and finishes (clear, opal, frosted, colored), typically from a minimum order of 500 pieces with smaller trial runs negotiable. Tube-formed / lampwork borosilicate is available for thick-wall industrial profiles. Start a custom shade →
Tell us the heat, the size and the finish — we’ll make the glass.
From a single explosion-proof replacement to a full hospitality or lighting-brand run, send your spec or drawing and we’ll quote in 24 hours. Heat-resistant borosilicate, opal and custom glass shades — manufacturer since 1999.
