Fluted Glass Lampshades: Profile, Light and Fit

A fluted glass lampshade has repeated ridges and channels. Specify the shade profile, flute direction, finish, fitter interface and light source; the design name alone does not confirm fit or light output.

These images are concepts, not JX product, factory, inspection or packaging evidence. JX lists an embossed floral fluted clear glass lampshade; confirm its part, dimensions and options in the current product record or a supplier drawing.

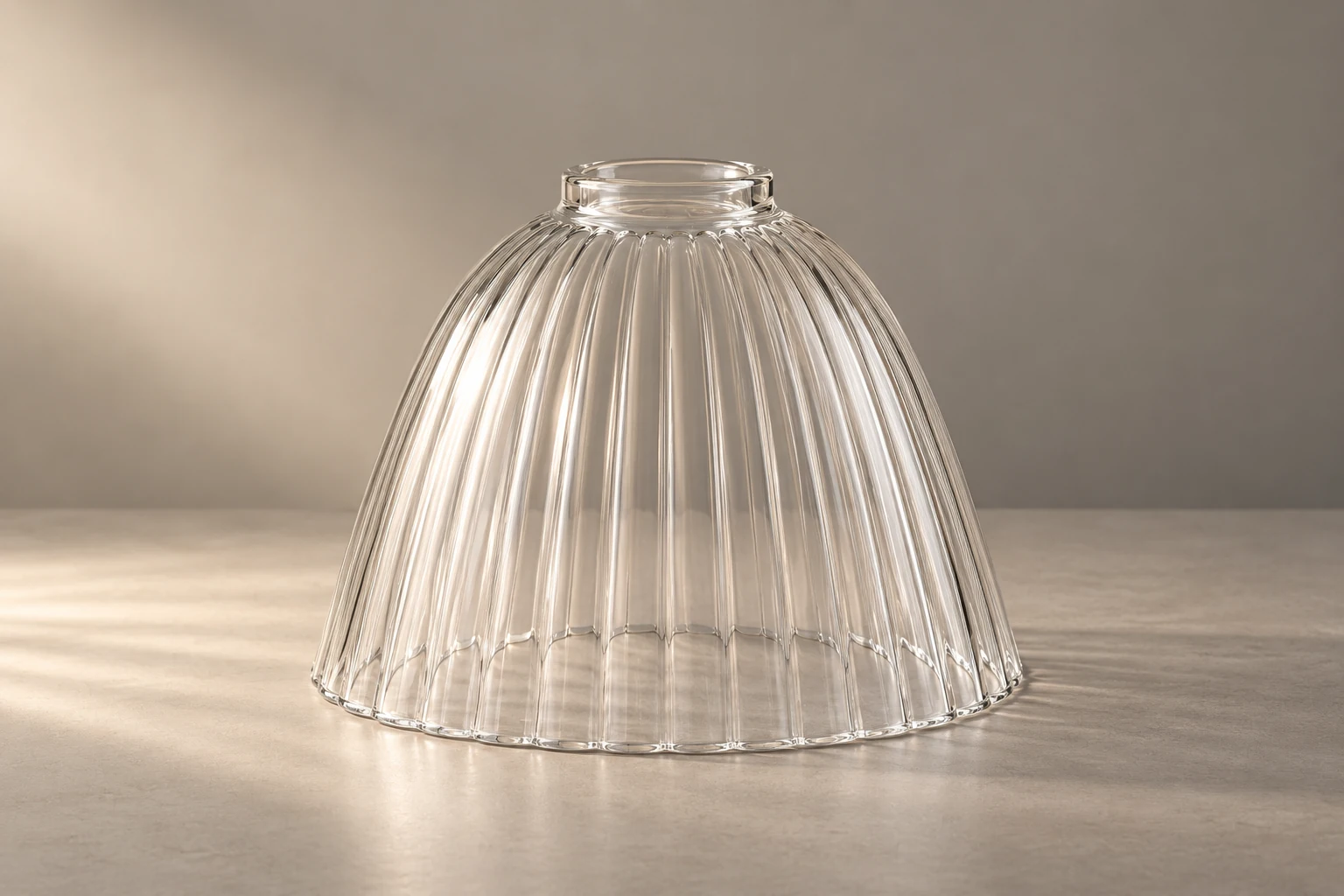

Illustrative concept image; it is not a JX product photograph.

What makes a glass lampshade fluted?

Fluting is a repeated linear relief: raised lands alternate with recessed channels. On a lampshade, the pattern may run vertically, horizontally or around the body, and it may stop before the neck or continue toward the rim. Those details shape the silhouette and the way highlights move across the glass.

The word alone does not say how the glass was formed. The National Glass Association's decorative-glass glossary defines patterned glass by its surface texture and describes rolled glass as a recurring pattern impressed between rollers. Saint-Gobain describes roller-formed textures in its DECORGLASS architectural range. These sources explain the terminology and one process family; they do not establish how a particular lamp shade was made. Confirm the supplier's actual forming route when tooling or repeatability matters.

For a purchase brief, treat “fluted” as the design starting point, then describe what the approved part must look like. A reference image is useful, but a side profile and a close view of the pattern resolve more ambiguity.

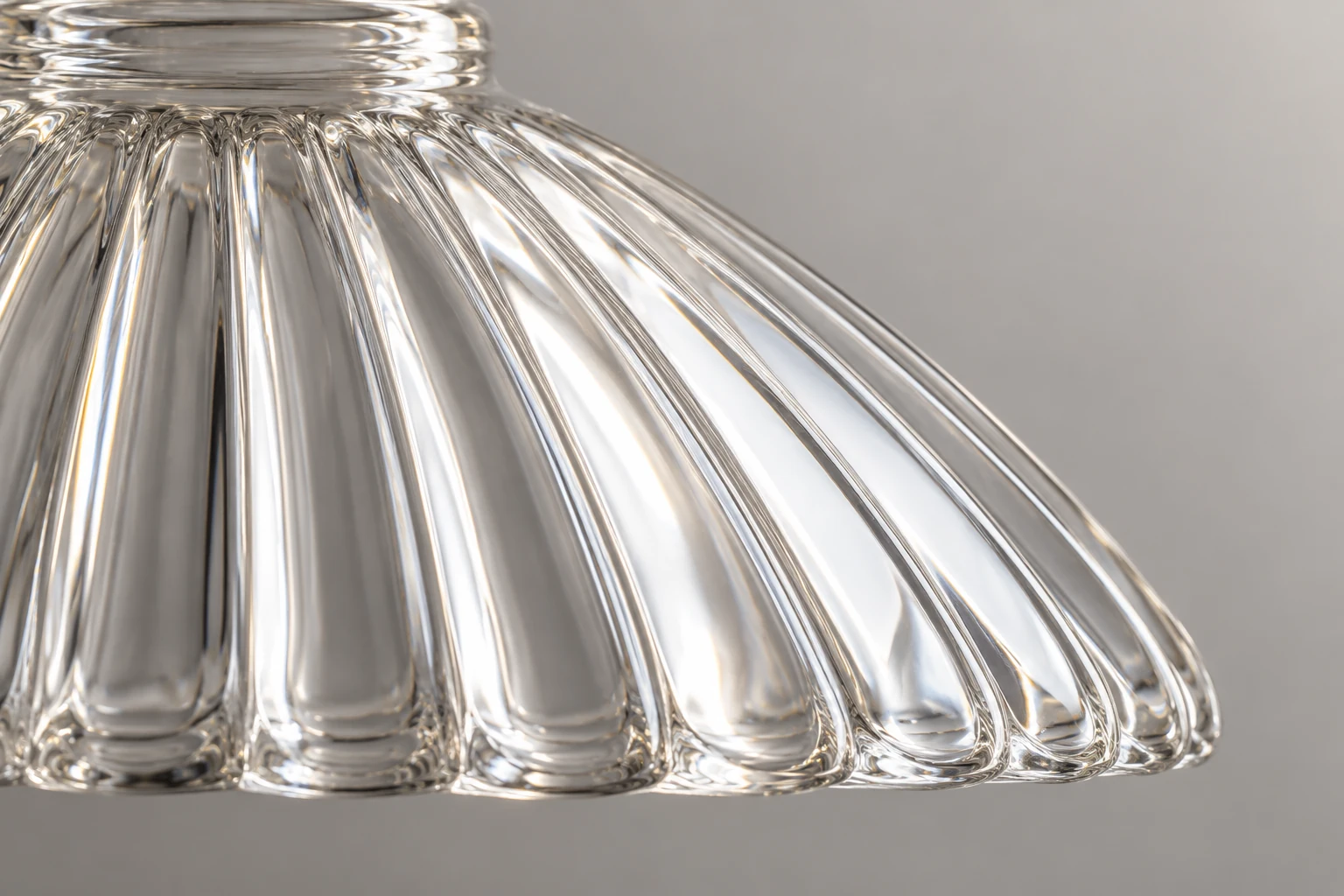

The visible pattern is the starting point for a drawing or sample review.

Which flute details belong in the specification?

Record the features that change the part, the fit or the illuminated appearance. Do not expect two suppliers to interpret a product name in exactly the same way.

Direction: vertical, horizontal, radial or another direction, shown in a reference view. It changes the visible rhythm and where reflections gather.
Cross-section: rounded, squared, shallow or pronounced, preferably shown in a drawing or sample. The word “fluted” does not set groove depth or edge shape.
Spacing: approximate pitch or the number and placement of channels on the approved profile. This makes the intended pattern density reviewable around the body.
Pattern limits: where the channels start and stop at the neck, shoulder and rim. A pattern that runs into a fitter seat can change the contact area.
Surface: which face carries the relief, when inside/outside orientation matters. This can affect cleaning, reflections and how the detail reads when lit.
Glass appearance: clear, translucent, opal, tinted or another approved appearance. The body and surface pattern work together; one does not define the other.

If dimensions or flute spacing must repeat across a collection, ask the supplier to mark them on the same drawing used for sample approval. A photo alone cannot define a tolerance.

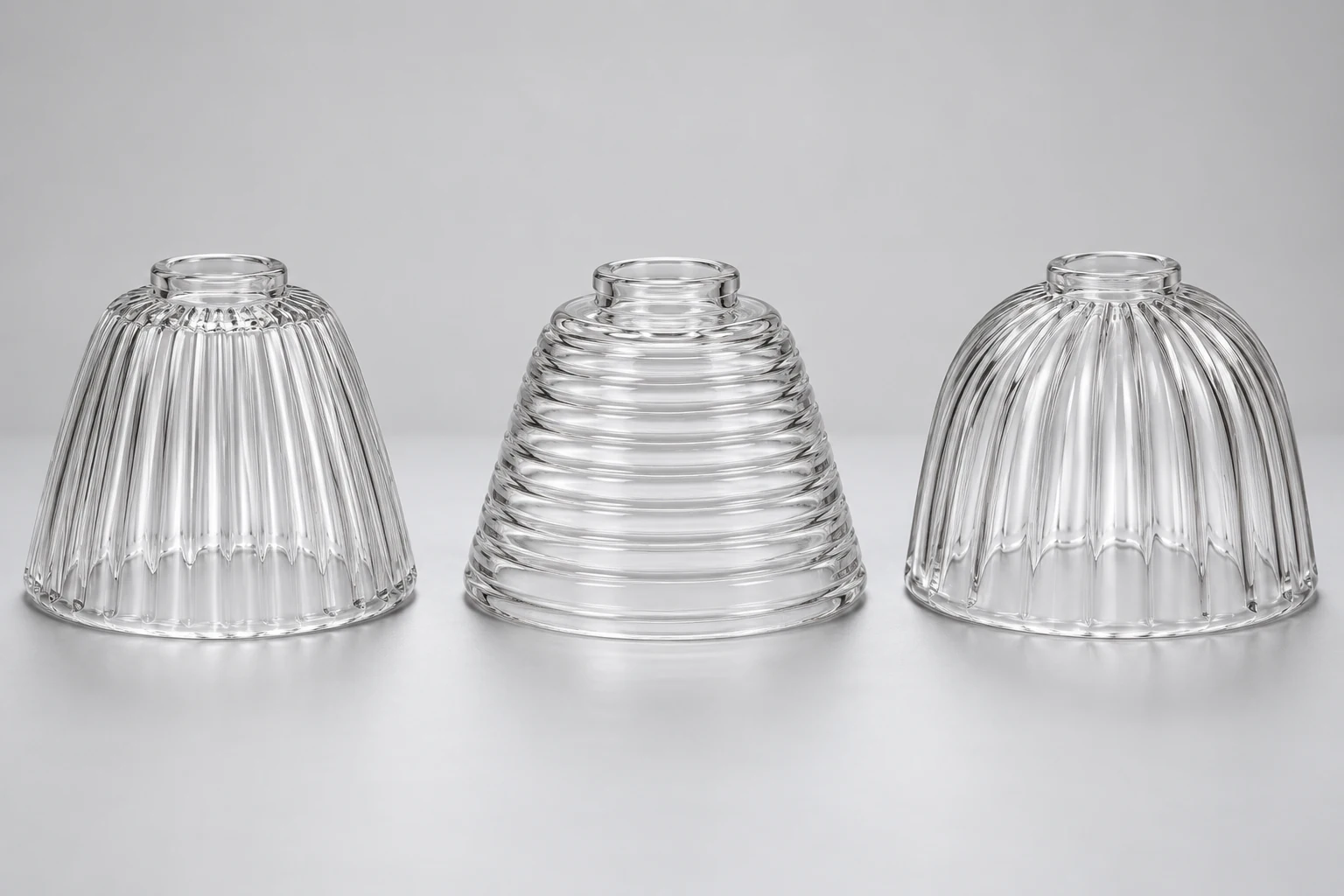

The examples compare flute direction on different profiles; no flute count or dimension is implied.

Fluted, ribbed, reeded and etched glass: what is the difference?

Retail listings sometimes use “fluted,” “ribbed” and “reeded” for similar linear textures. Those labels can help with discovery, but they may not define an identical cross-section. “Etched” describes a surface treatment rather than a set of continuous ridges. Seeded glass has discrete bubbles or inclusions rather than a repeated channel pattern.

Fluted: repeated channels or ribs, commonly arranged in a regular direction. The word does not settle pitch, depth, cross-section or where the pattern ends.
Ribbed or reeded: a series of raised lines or grooves. Product naming often overlaps with “fluted”; check whether the ridges are rounded, squared, shallow or continuous.
Etched or satin: a treated area with a matte or diffusing appearance. This does not specify the shade shape, fitter or pattern geometry.
Seeded or bubbled: separate visible bubbles or points within the glass, rather than a continuous linear relief.
Pressed or patterned: a surface design made with a patterning process. Ask to see whether the finished shade matches the particular flute profile you need.

The National Glass Association's decorative-glass glossary distinguishes patterned and etched treatments as categories. For an actual lamp shade, use the drawing or physical sample as the reference and keep the supplier's process description separate from the appearance requirement.

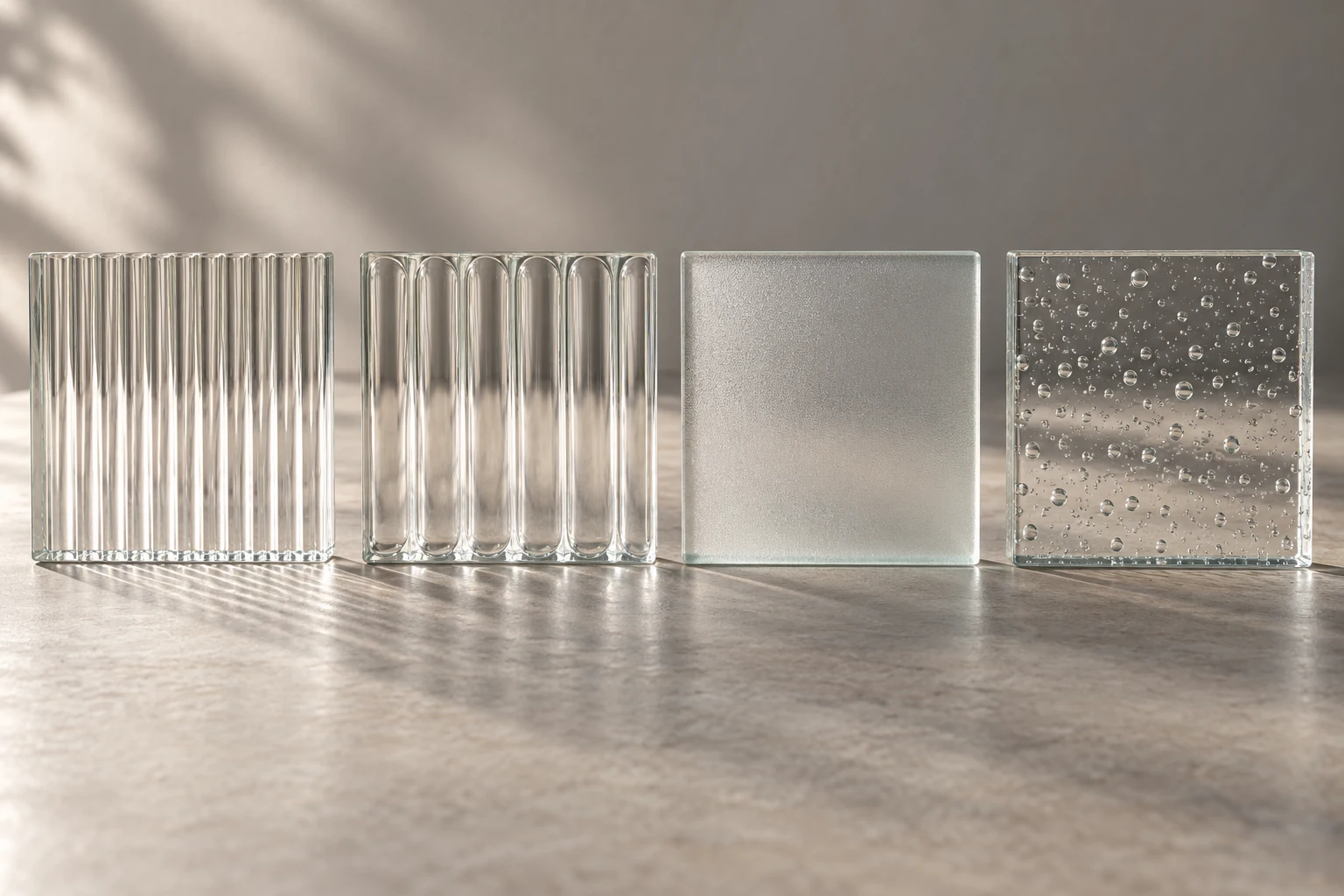

Compare the surface geometry, not just the names used in a listing.

What does a fluted shade change about the light?

It can change visible highlights and the apparent texture around a bulb, but “fluted” does not predict one fixed light distribution. Glass color, transparency, wall thickness, flute geometry, bulb position, viewing angle and room surfaces all affect the result.

Pilkington describes its rolled texture glass as transmitting diffused light, while the National Glass Association explains that some decorative glazing patterns diffuse transmitted light. Those examples concern architectural glass. A smaller shade assembled around a bulb is a different optical setup, so use them as context rather than a performance specification.

Compare a sample in the intended fixture with the intended bulb and dimming condition. Look at it both on and off. Record front and side views, the brightest visible highlights, and whether the bulb is too exposed for the intended application.

Keep the approved sample and lighting setup with the review record. A later color or texture check can then use the same bulb and viewing angle instead of relying on a phrase such as “soft light.”

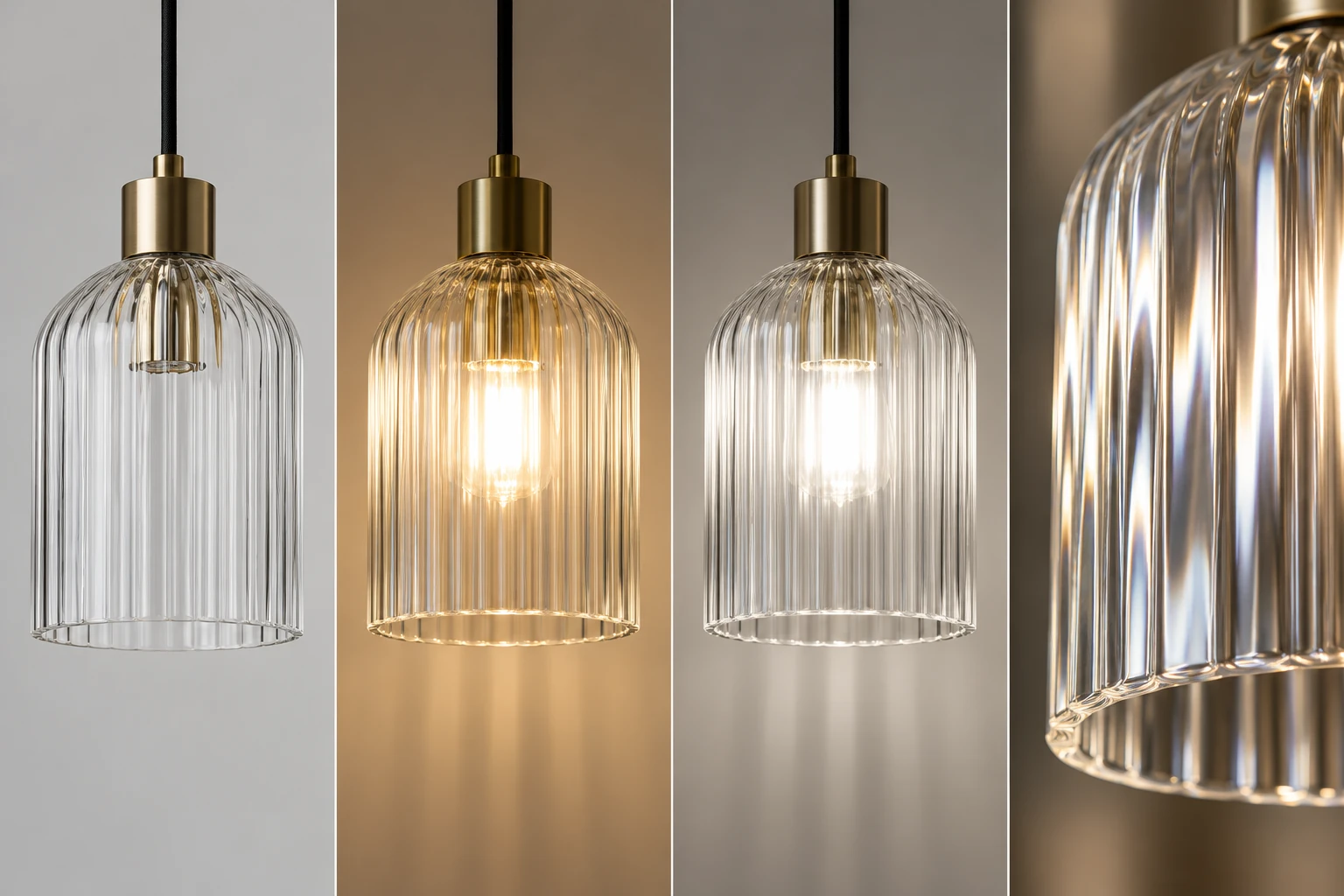

Illustrative comparison; use the actual fixture and lamp for an approval test.

Which shade profile suits the fixture?

The outer silhouette and the mounting interface are separate decisions. Start with the luminaire and clearance, then choose a flute pattern that fits the shape rather than selecting by a product photo alone.

Pendant or ceiling fixture: decide whether the shade hangs downward, sits close to the ceiling or exposes the bulb. Confirm the top opening, retainer and clearance from the fixture body.
Wall sconce: note whether the shade projects upward, downward or outward, and which parts of the pattern face the room. Match the holder, support direction and wall-plate clearance.
Table or desk lamp: decide whether the glass supports a task light or a decorative source. Check the fitter, neck depth, bulb position and arm clearance.
Vintage replacement: decide whether the goal is to match the original profile or use a new design. Photograph the fitting and measure the original shade before ordering.

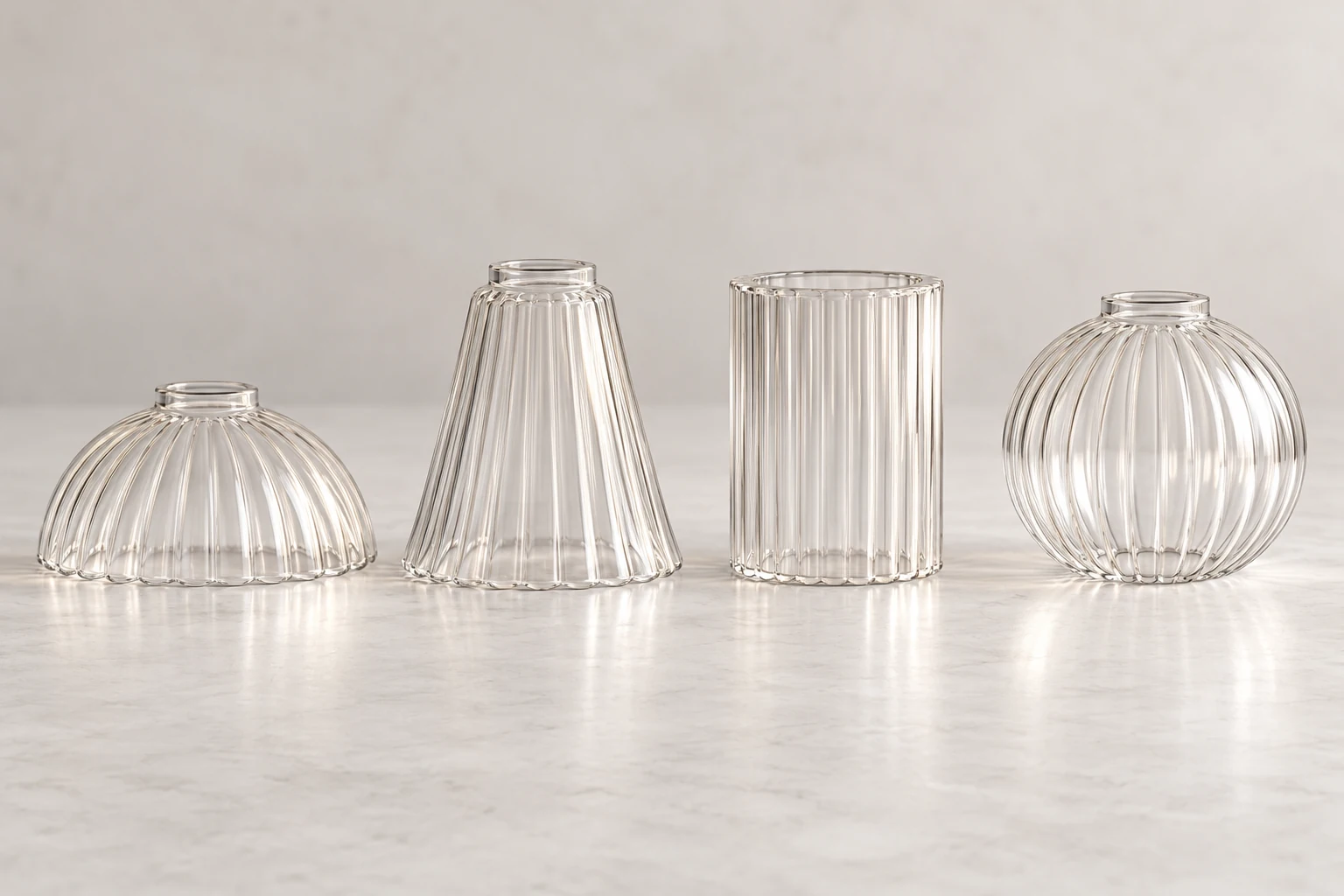

Profile examples are illustrative and do not represent standard sizes.

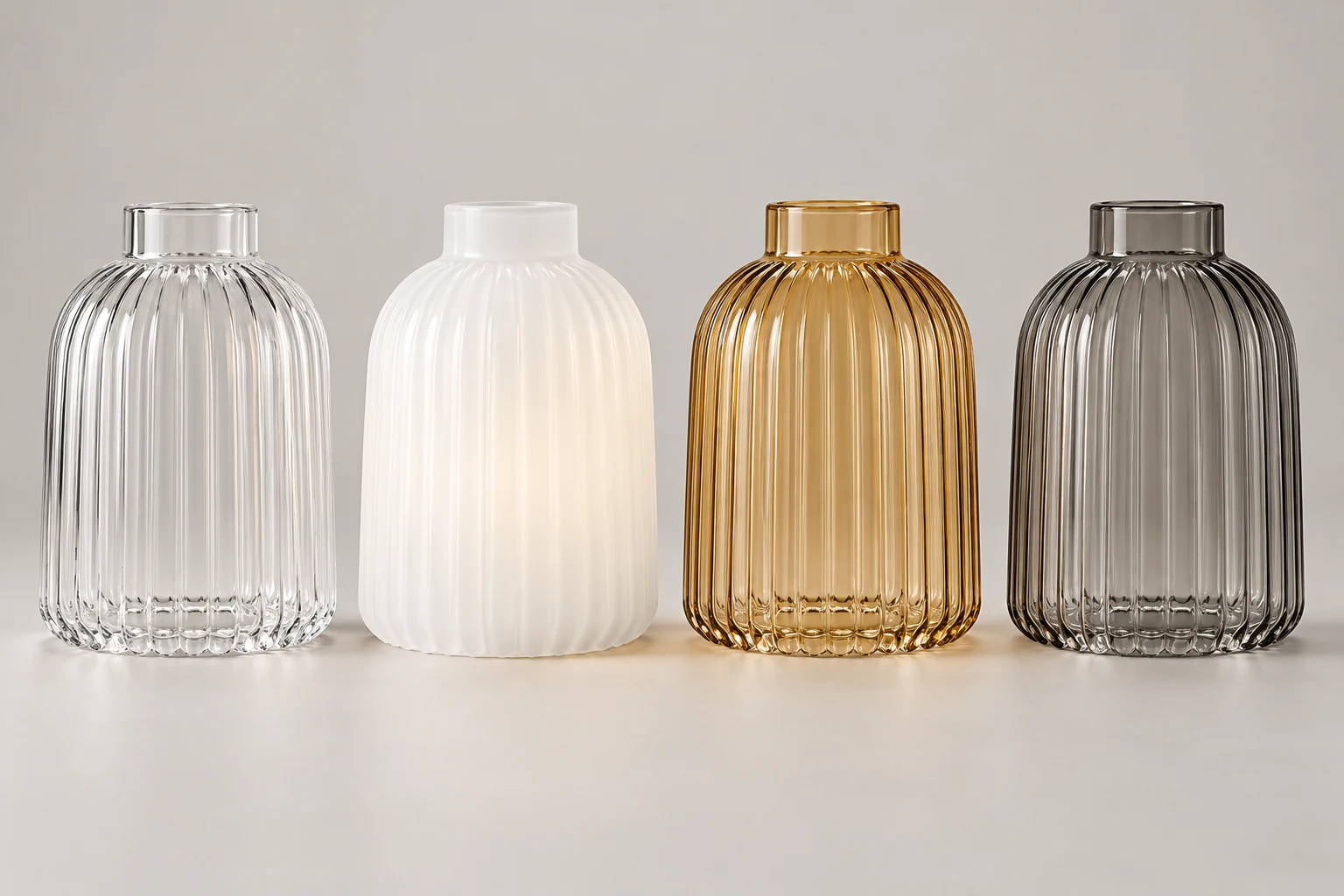

Appearance options are illustrative; confirm the actual colors and finishes available from the supplier.

How do you measure a fluted glass shade for replacement?

Measure the glass part and the fixture interface separately. Do not order by the outside diameter of the lamp or by a general shade name.

Photograph the shade beside a ruler from the front, side and fitting end. Include the fixture or holder where safe to do so.
Measure the overall height and the widest outside diameter of the glass body.
Measure the opening at the fitter or neck. Note its shape, depth and whether the glass rests on a ring, shoulder, screws or another retaining part.
Record where the flutes begin and end relative to the opening, shoulder and rim.
Note the bulb position, holder direction and any clearance limits documented by the luminaire maker.
Send the measurements with the fixture model or a drawing. Ask the supplier to confirm the interface before production.

If the opening has a chip or the old shade is cracked, avoid forcing a new part onto the fixture. Ask the supplier which dimensions can be taken from the remnant and which must come from the holder or fixture drawing.

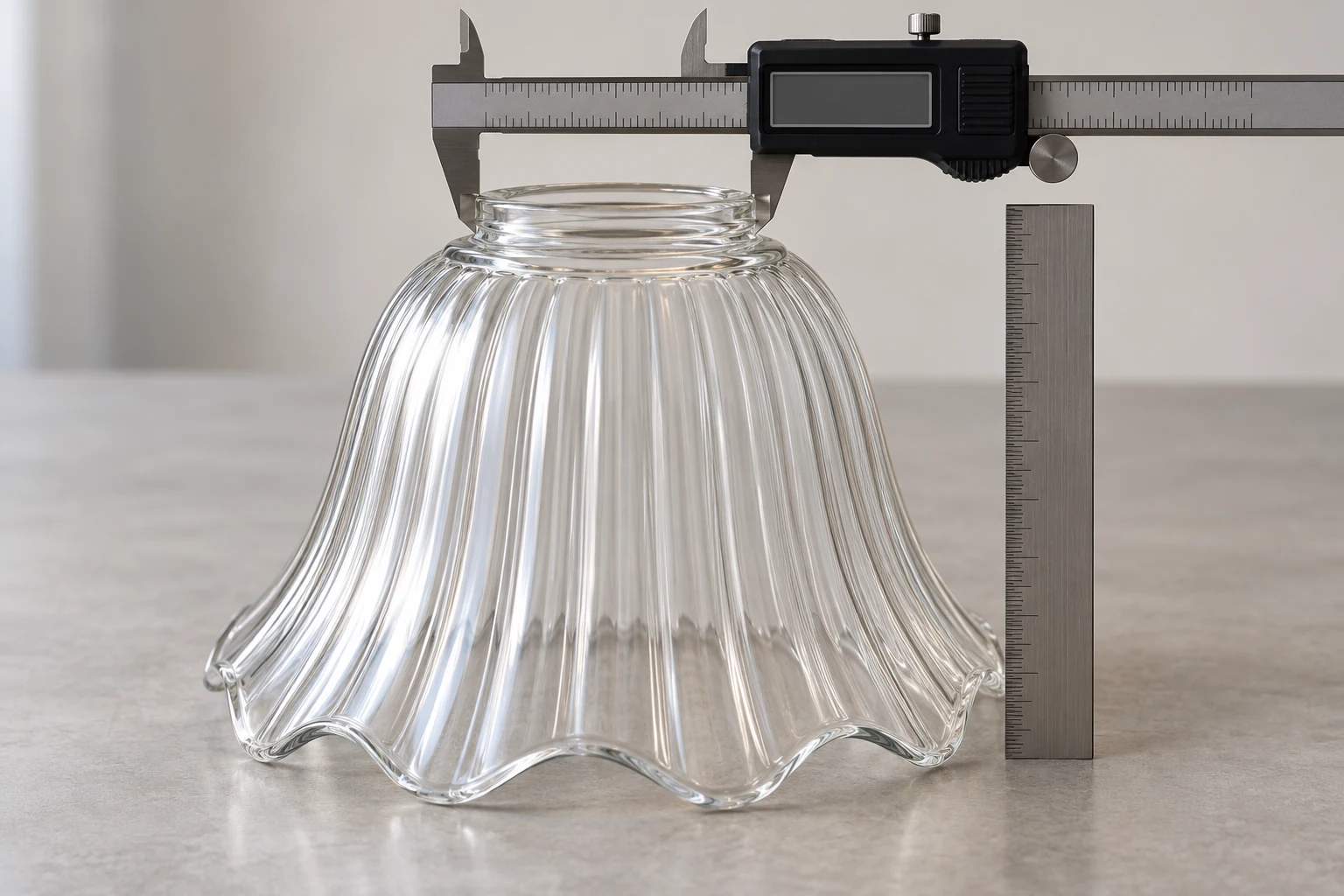

The tools are illustrative; the image does not state a usable dimension.

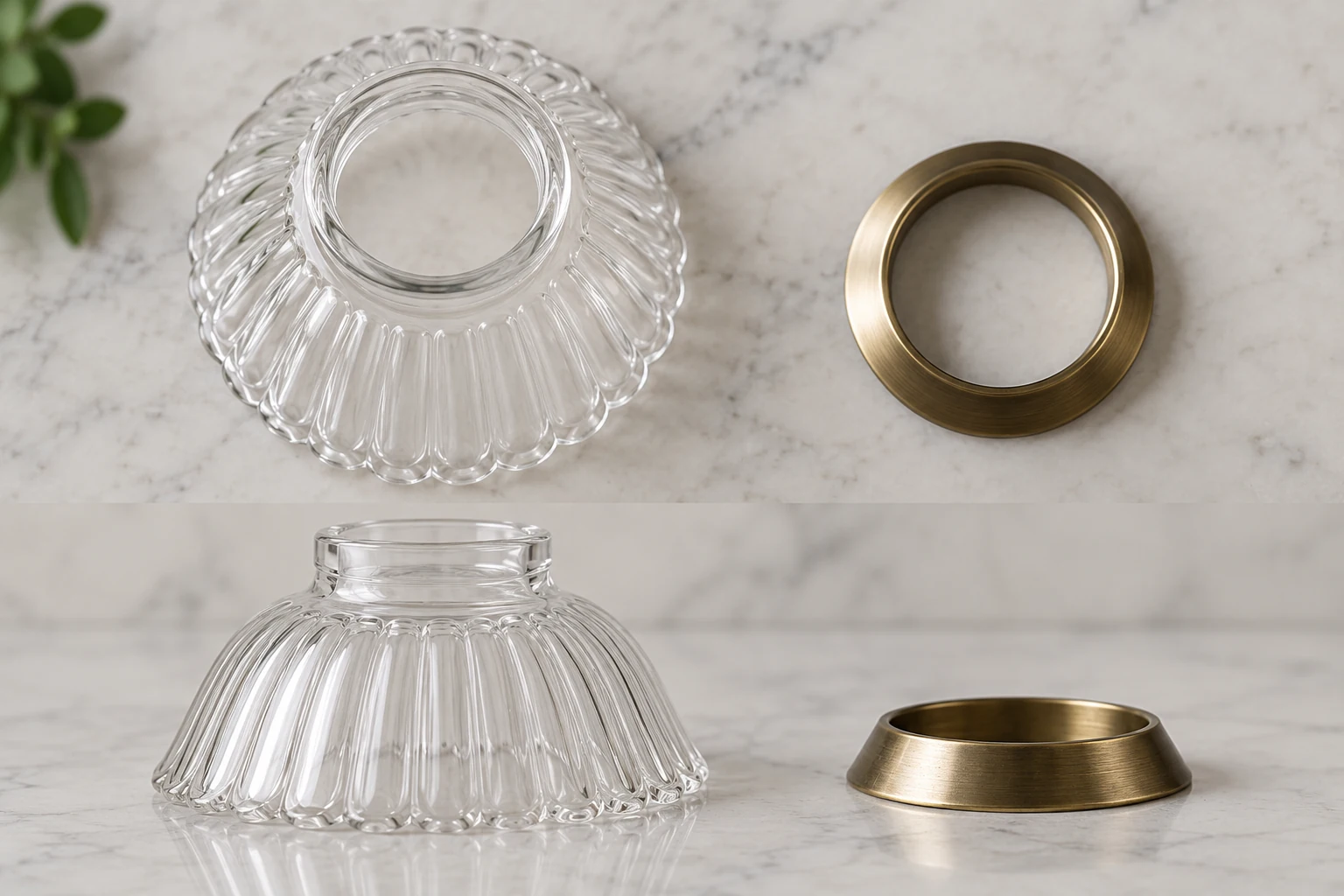

Match the actual holder and retention method; the sketches are not a universal fitter standard.

How should a sample be reviewed before an order?

One attractive photo cannot confirm fit or finish. Review each sample against the same drawing and assembled-fixture conditions before approving a production run.

Compare the sample with the signed drawing: profile, flute direction, spacing, termination points, opening and rim.
Check the glass with the fixture switched off. Look for chips, cracks, visible waviness or a mismatch against the approved color reference.
Fit the shade without force. Confirm that the support contacts the intended seat and that the holder retains the shade as designed.
Switch on the intended lamp and review the front and side view under the planned dimming condition.
Record the sample revision, lighting setup and accepted deviations in the approval record.

The National Glass Association's decorative-glazing viewing guidance covers viewing conditions and visual inspection terminology. For a lamp shade, add the fixture and bulb to that review; they are not present in architectural-glass viewing guidance.

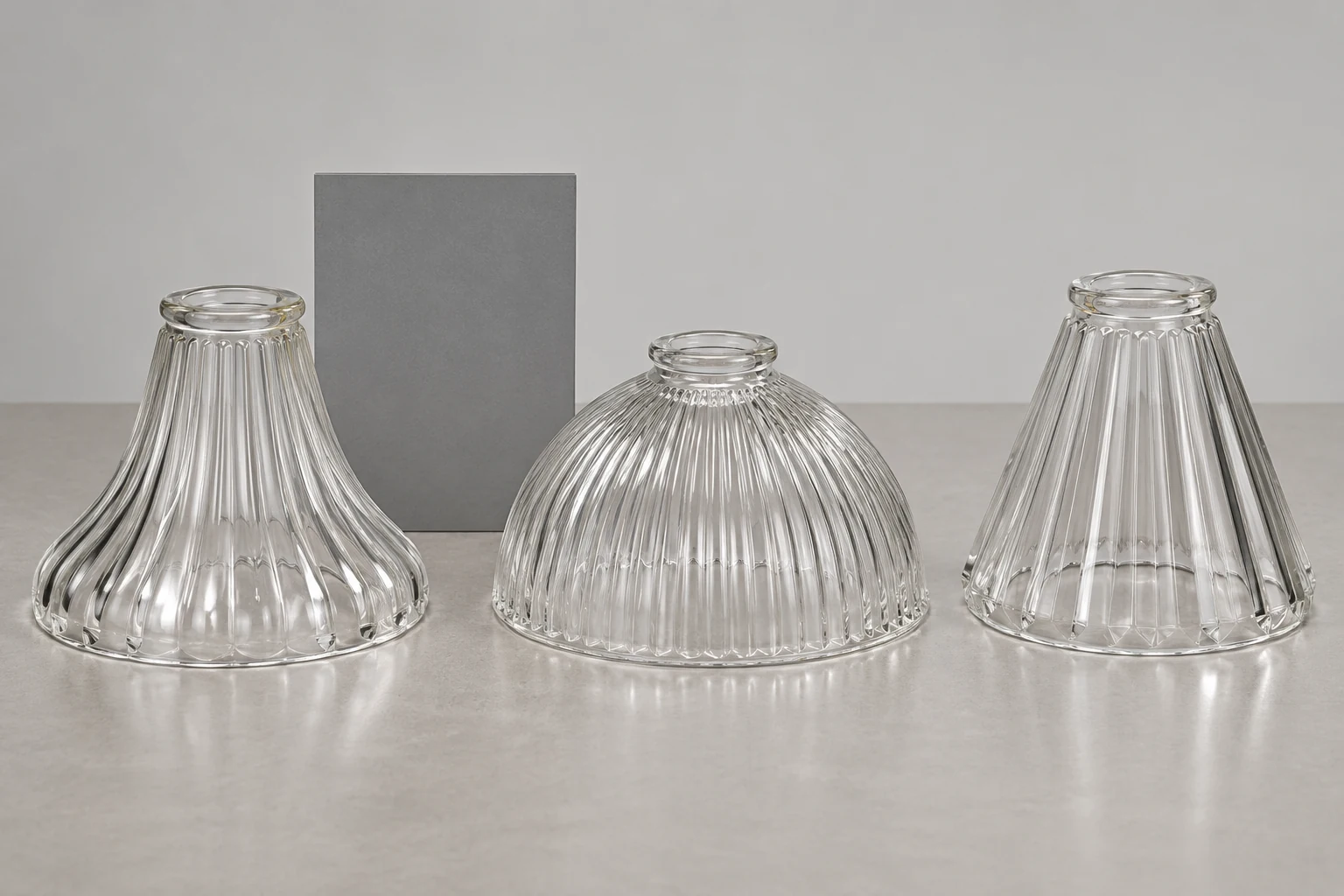

Illustrative sample-review setup; it is not an actual JX inspection.

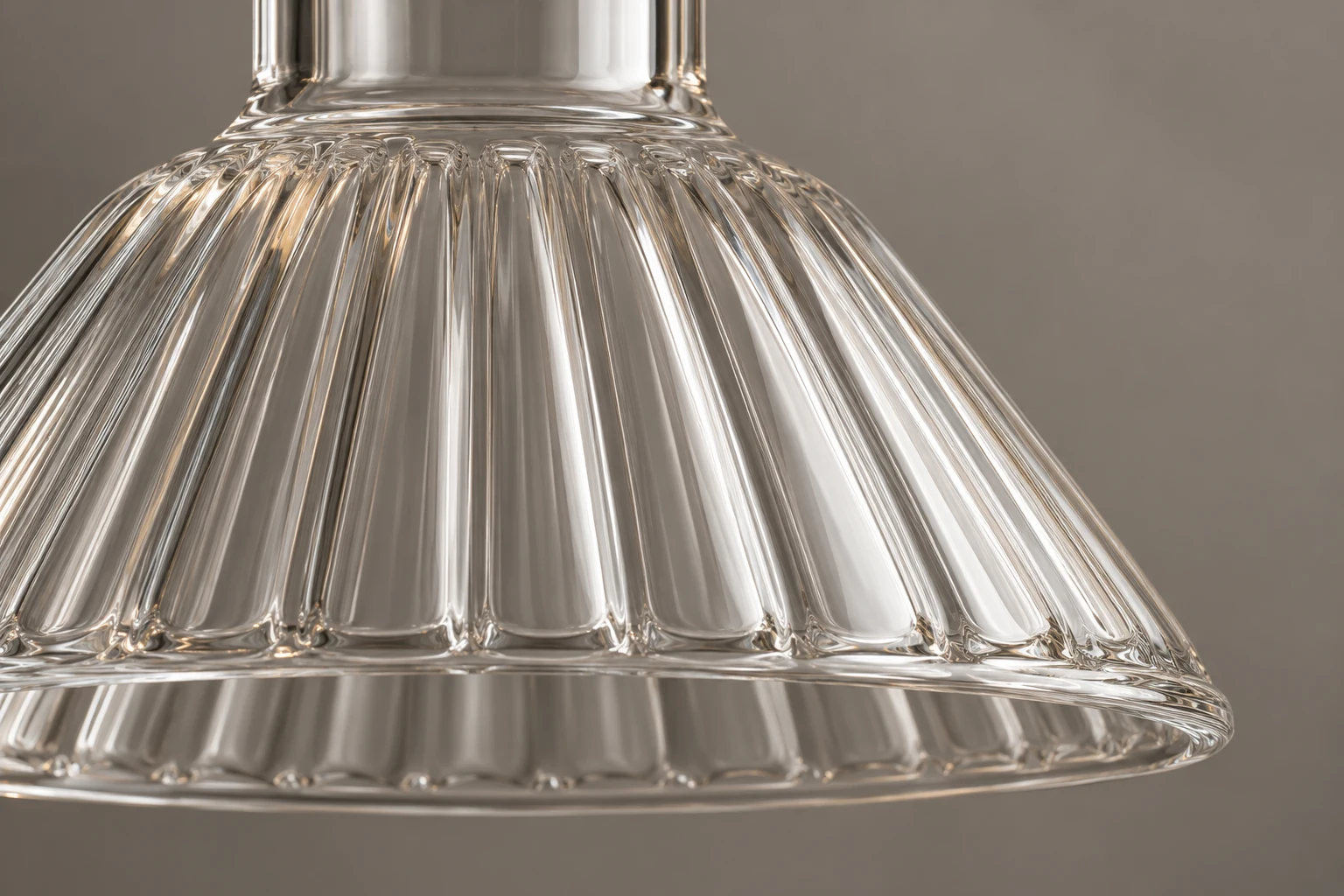

Use the actual approved sample to assess edge condition and pattern termination.

What should an OEM fluted-shade RFQ include?

Attach the reference image and answer the details below. If a field is still open, label it for supplier confirmation instead of guessing.

Fixture application and whether the request is for a replacement part or a new design.
Side and top views, a fixture photo, and a dimensioned profile drawing if available.
Shade silhouette, flute direction, cross-section, spacing, depth and termination points.
Fitter or retaining interface, opening size, seating depth, overall height and widest diameter.
Requested glass appearance, such as clear, translucent, opal or a specified tint; attach the color reference.
Intended lamp source, shade orientation and any clearance requirements supplied by the luminaire maker.
Target quantity, destination market, packing requirements and requested sample date.
Acceptance method: reference sample, drawing dimensions, visual checkpoints and any allowable variation to confirm.

Ask the supplier to confirm whether an existing mold or forming route can meet the requested profile, whether a new tool would be needed, and what sample, quantity and timing conditions apply. Do not assume MOQ or lead time from a product photo.

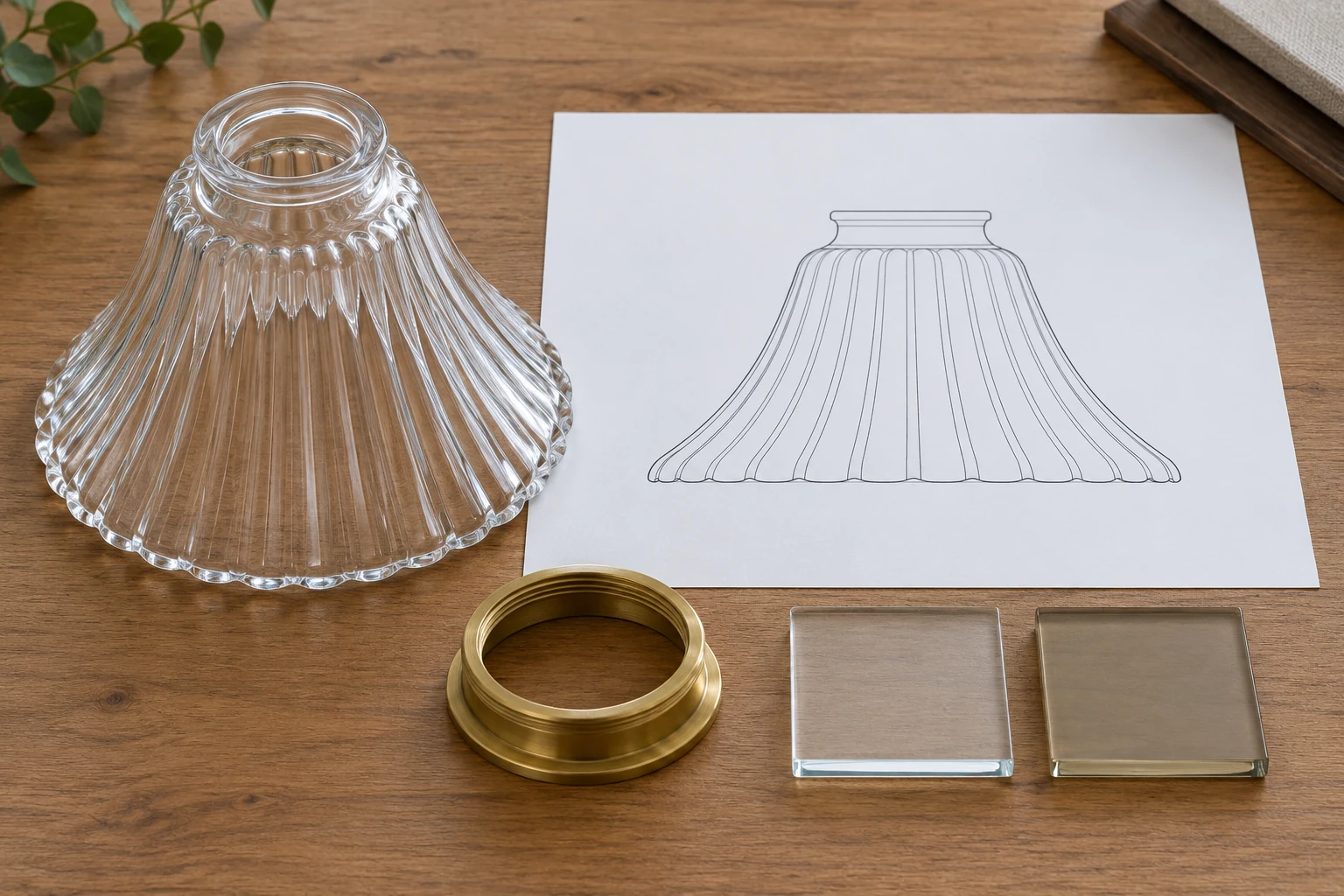

The drawing is a concept and contains no verified dimensions or manufacturing tolerances.

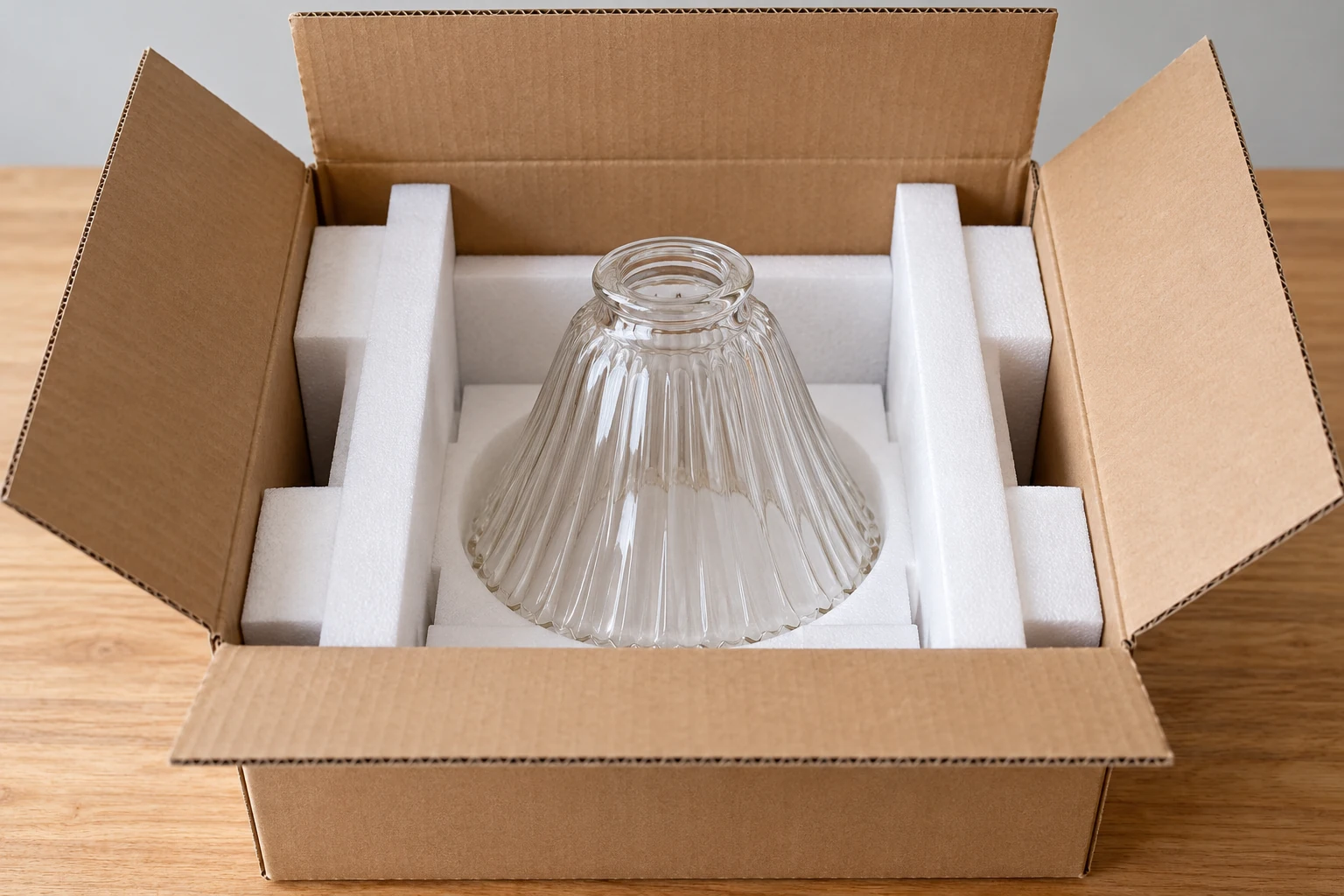

Packaging illustration only; confirm the actual packing method for the part and shipping route.

Questions buyers ask about fluted glass lampshades

Is fluted glass the same as ribbed glass?

Product listings may use the words for similar linear textures. The labels do not reliably establish an identical groove profile. Compare a cross-section drawing or approved sample and record the intended flute shape, direction and spacing.

Does a fluted glass lampshade diffuse light?

It may change highlights or transmitted light, but the result depends on the glass body, pattern, bulb and fixture. Review the assembled shade with the intended lamp instead of assuming that every fluted surface softens light in the same way.

Can any fluted glass shade replace my old shade?

No. The replacement must match the holder or retainer, opening, seating depth, overall profile and available clearance. A similar outside shape does not confirm a compatible fit.

Does “fluted” tell me how the shade was made?

No. It describes the visible pattern. Ask the supplier to confirm the forming method and whether the pattern requires existing or new tooling for the requested size.

What information should I send with a quote request?

Send the fixture application, photos, profile drawing, opening and body dimensions, flute reference, preferred glass appearance, expected quantity and destination. Mark unconfirmed details clearly.

How do I compare colors or finishes?

Compare the actual samples under the same lighting and background. Record whether the part is reviewed lit or unlit, the bulb source and viewing angle. A screen image alone can misrepresent color and transparency.

Request a fluted-glass lampshade quote

Put the flute profile beside the shade outline and fitter measurements so a supplier can review them together. For a collection or replacement program, send the drawing, reference photos, opening dimensions and intended light source in one request. JX's custom lampshade RFQ builder can collect those details; the supplier must still confirm tooling, sample, quantity and lead-time conditions for the design.

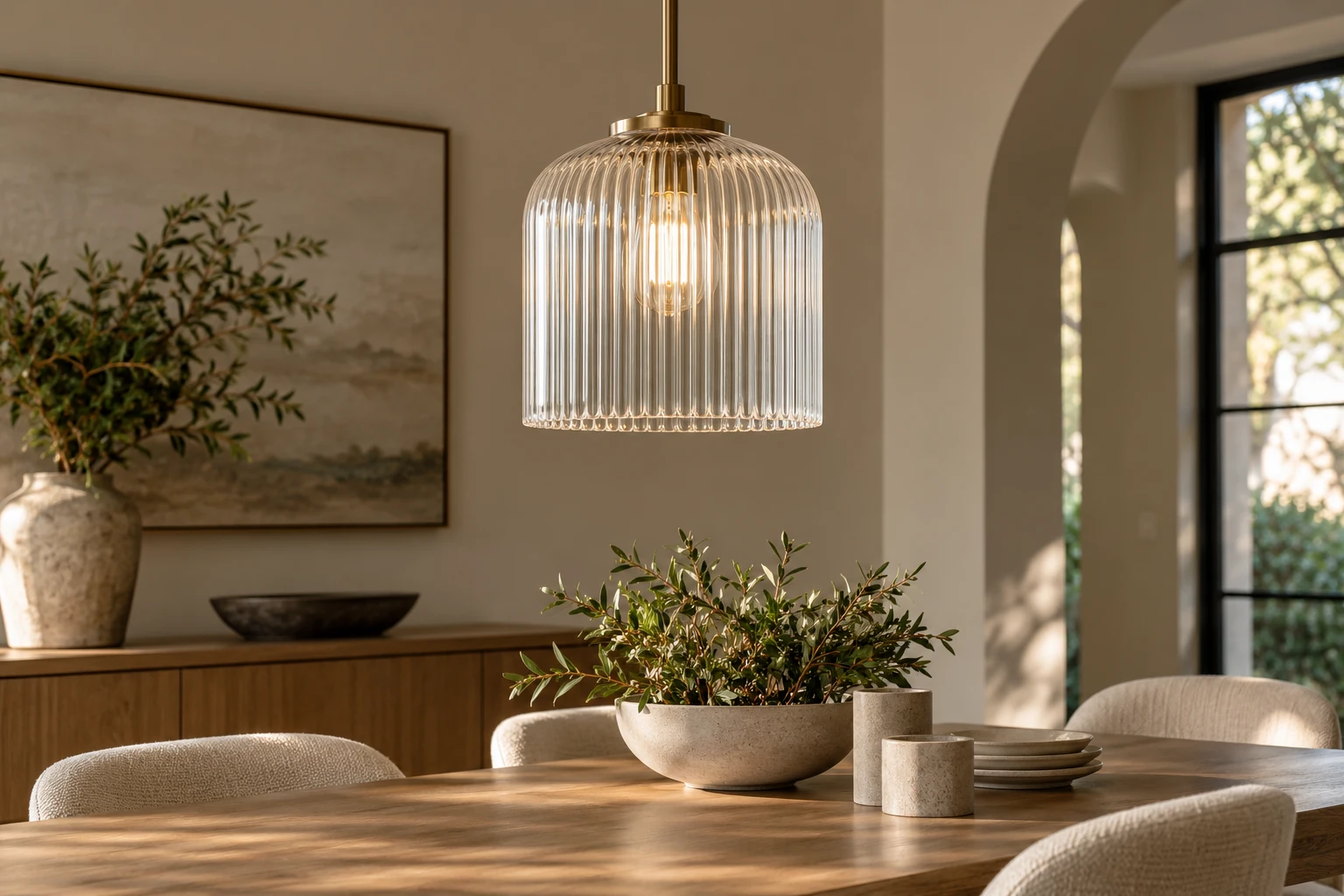

Illustrative application, not a customer installation or JX project.
